What it is
One probe. Every electrical test.

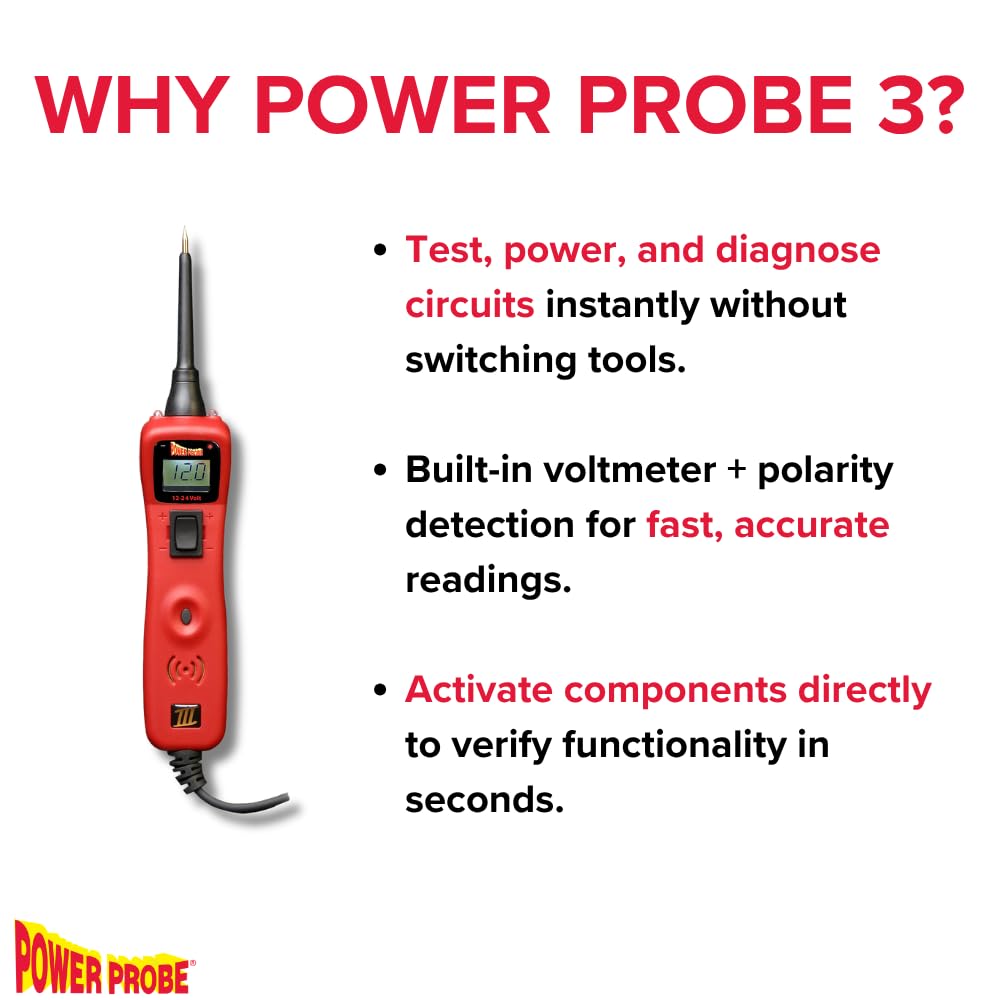

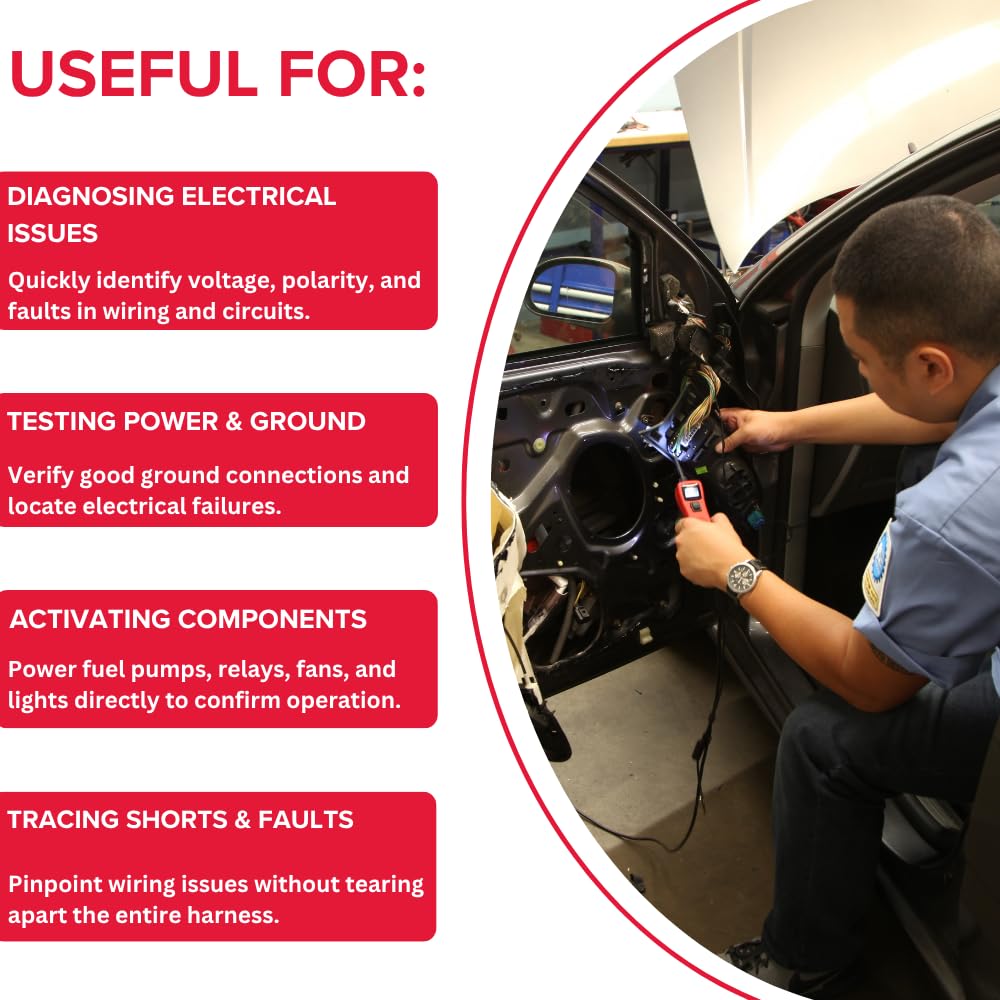

The Power Probe 3 is a handheld, all-in-one automotive circuit tester for diagnosing electrical faults on 12V and 24V DC systems. It combines a digital voltmeter, polarity indicator, continuity tester, signal monitor and a power/ground injector in a single rugged body — replacing the test light, multimeter, jumper wire and continuity tester a workshop would otherwise reach for.

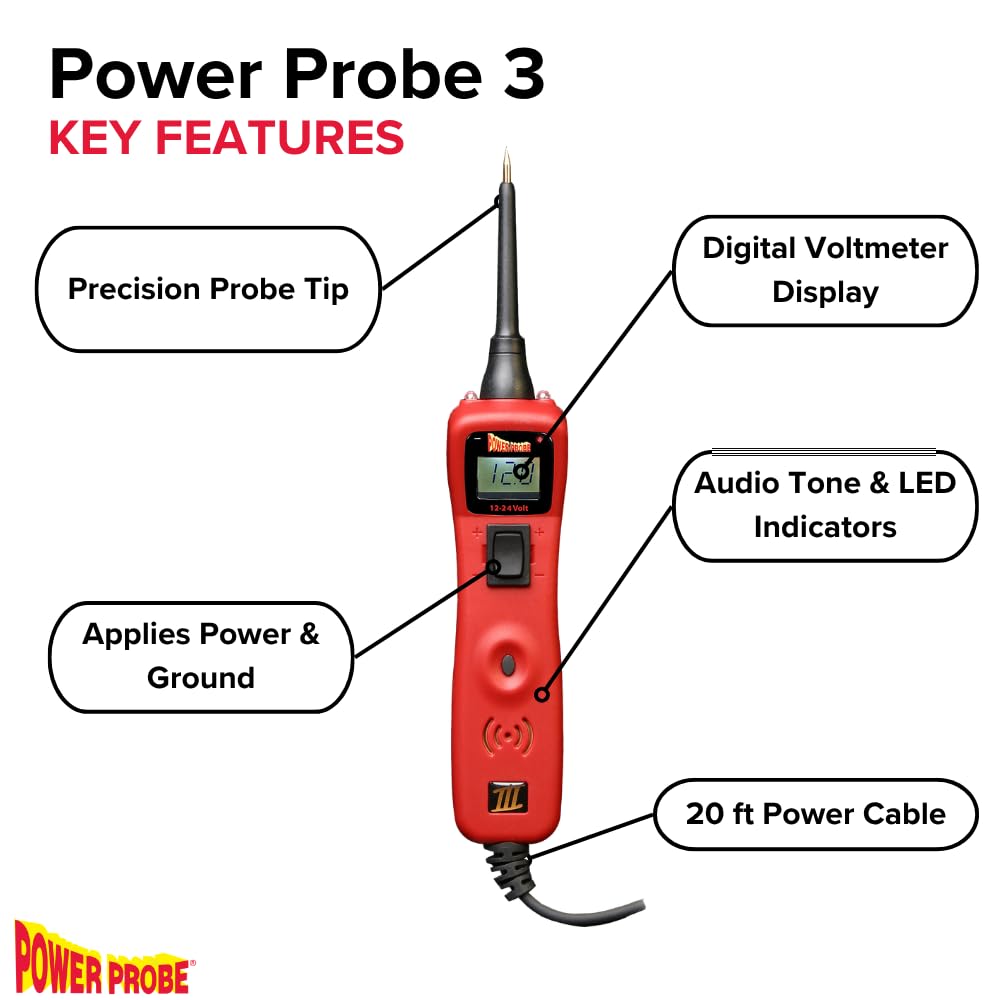

Features & functions

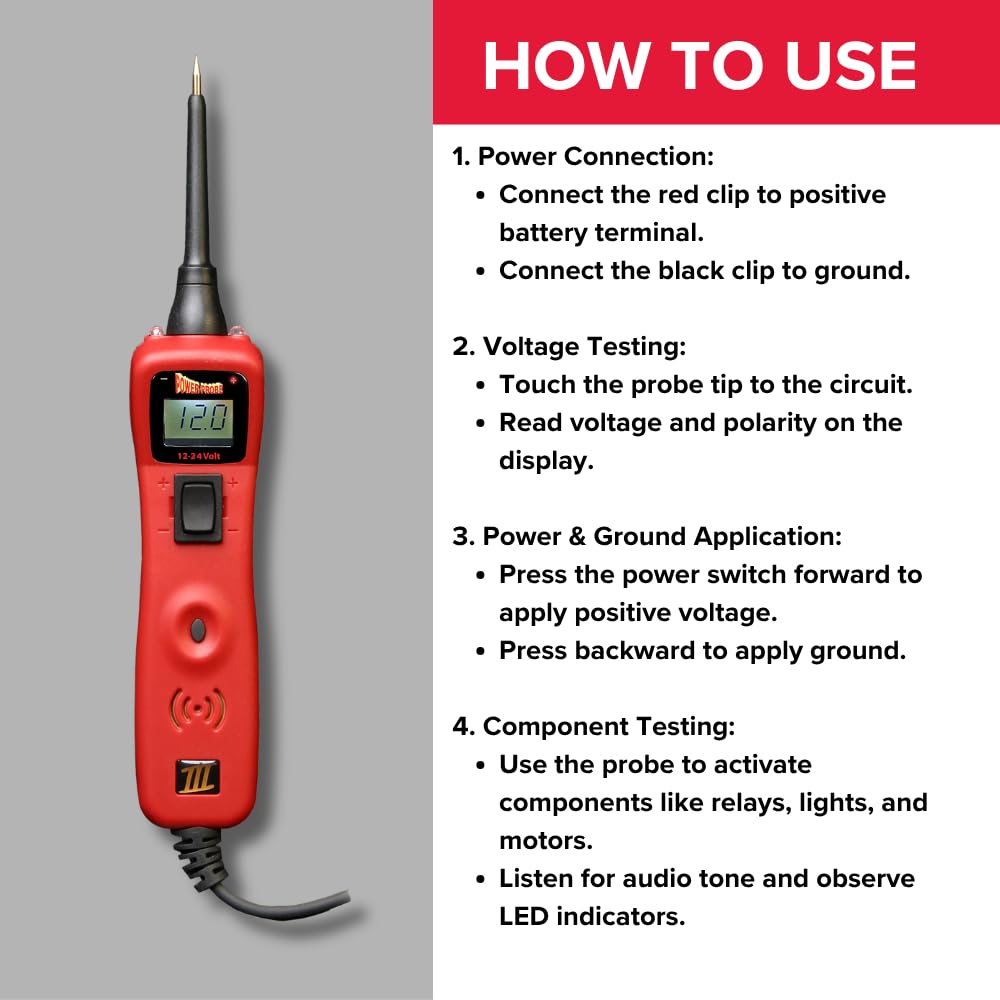

- Supply battery voltage or ground right at the probe tip to power motors, lamps, relays and solenoids — no back-probing the loom
- Digital voltmeter (0–70V) with min/max capture and a backlit LCD reading to 0.1V
- Red/green polarity LEDs and distinct audible tones confirm positive, negative and open circuits
- Two built-in LED work lights illuminate the test area
- Bad-ground indicator flags poor earth connections — a frequent cause of intermittent faults
- Two-level continuity testing (LCD <20kΩ, green LED <600Ω) plus audible signal monitoring
Resettable protection: an 8-amp thermal circuit breaker with a manual reset button guards against accidental shorts — reset and keep working, no blown fuses.
Technical specifications
| Function | Range / value |
|---|---|
| DC voltmeter range | 0 to +70V DC + 1 digit |
| Working voltage | 12V / 24V DC |
| Circuit breaker | 8 A thermal, manual reset |
| Continuity to ground | Display <20kΩ · green LED <600Ω |
| Power cable length | 20 ft (6 m) |
| Probe tip | 3 in (8 cm) stainless steel |
What's in the box
1× Power Probe 3 tester (Red) · 1× 20 ft power cable with battery clips · 1× 3 in stainless steel probe tip · 1× battery clip set · 1× instruction manual
