What it is
Power, ground and diagnostics. One probe.

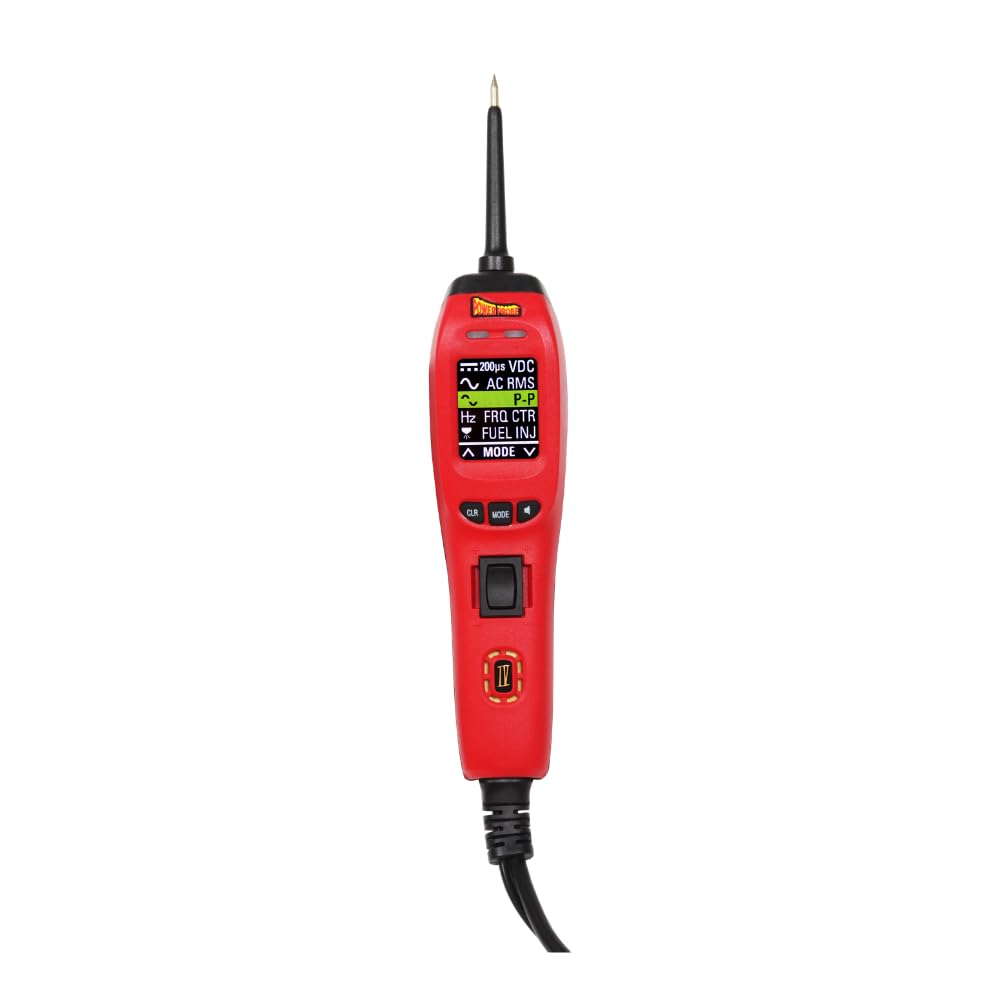

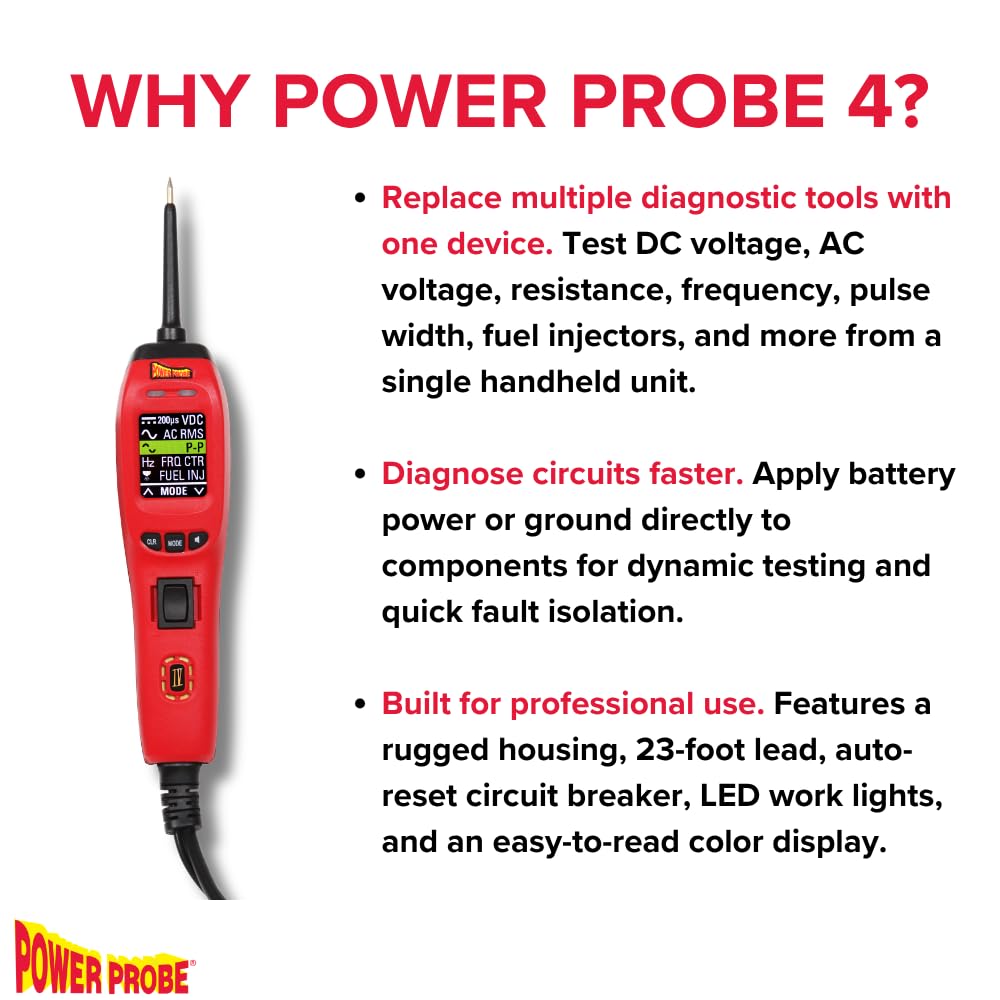

The Power Probe 4 (PP4) is the next generation of the Power Probe circuit tester — the signature power-and-ground probe now loaded with multimeter functions, eight diagnostic modes and an easy-to-read colour LCD. Touch the tip to a circuit to apply battery voltage or ground through the 23 ft lead, read volts, resistance, frequency and pulse width on one screen, and pulse fuel injectors or test module drivers from the same rugged tool.
// Function 01
Power & Ground
Apply battery V or ground at the tip
// Function 02
8 Diagnostic Modes
Volts, ohms, Hz, pulse width and more
// Function 03
Colour LCD
Back-lit, multiple readings on screen
// Function 04
Injector & Driver
Computer-safe 0.1mA floating tip

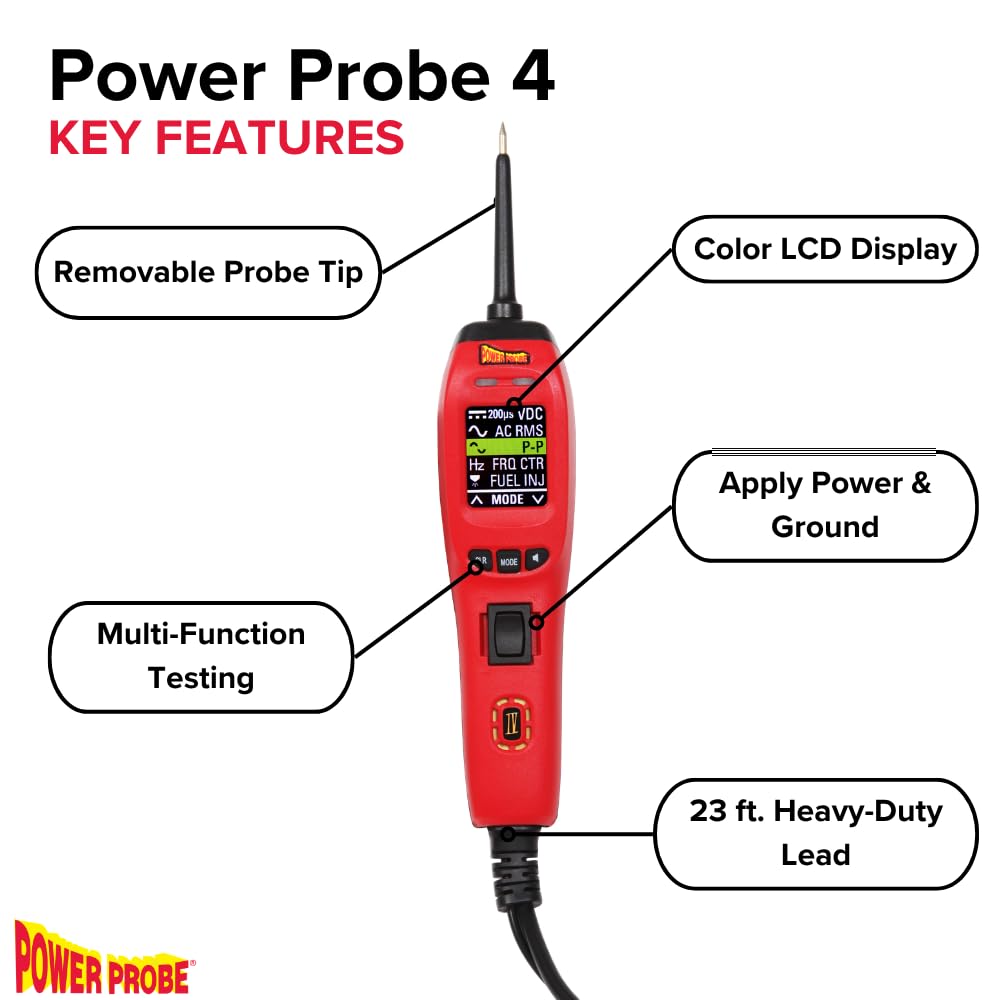

Features & functions

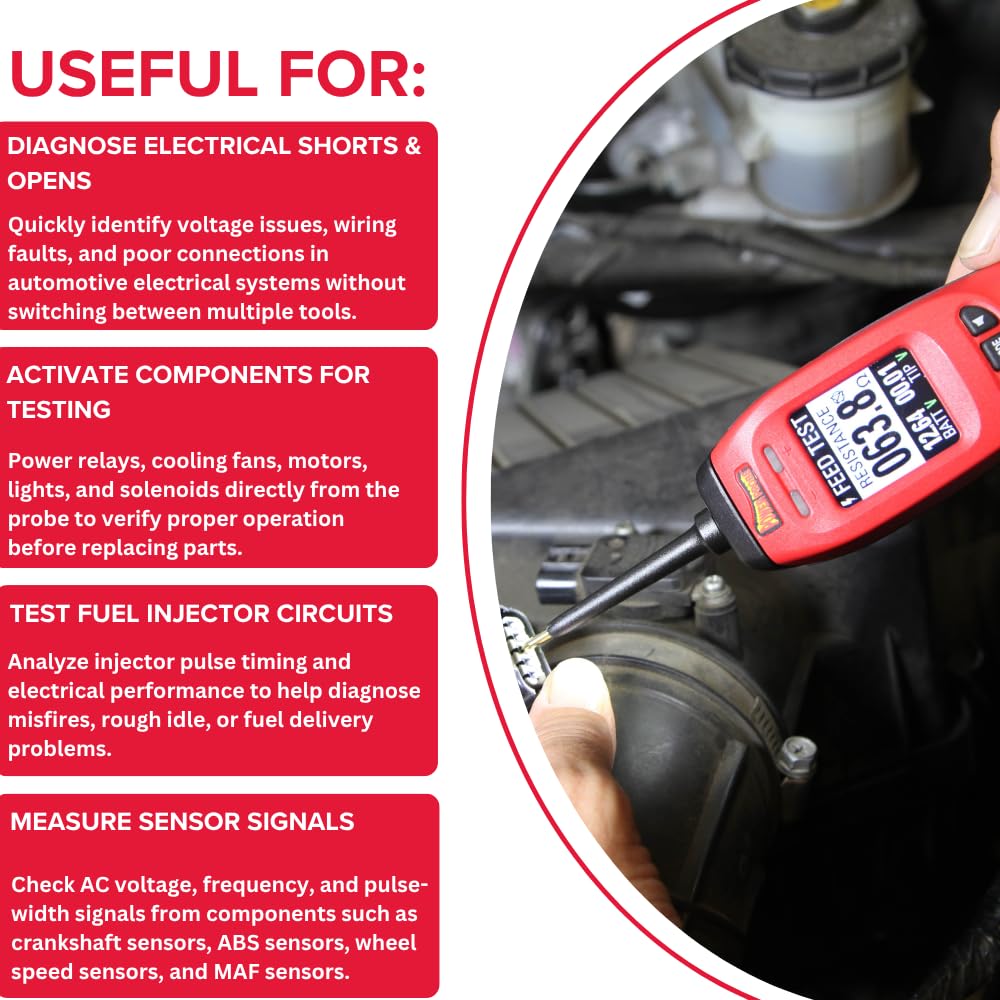

- Applies battery power or ground directly at the probe tip to actuate motors, relays, lights and solenoids
- Eight diagnostic modes: DC volts, AC volts RMS, AC peak-to-peak, resistance, frequency, pulse width, fuel injector and module driver
- Colour LCD with back light shows multiple readings on one screen; LED work lights illuminate the job
- 0.1mA floating tip designed for computer-safe module-driver testing
- Auto-reset 8 amp circuit breaker and a rugged housing built for daily workshop use
- 23 ft (7 m) heavy-duty lead, works on 12V and 24V systems, and pairs with the ECT3000 circuit tracer

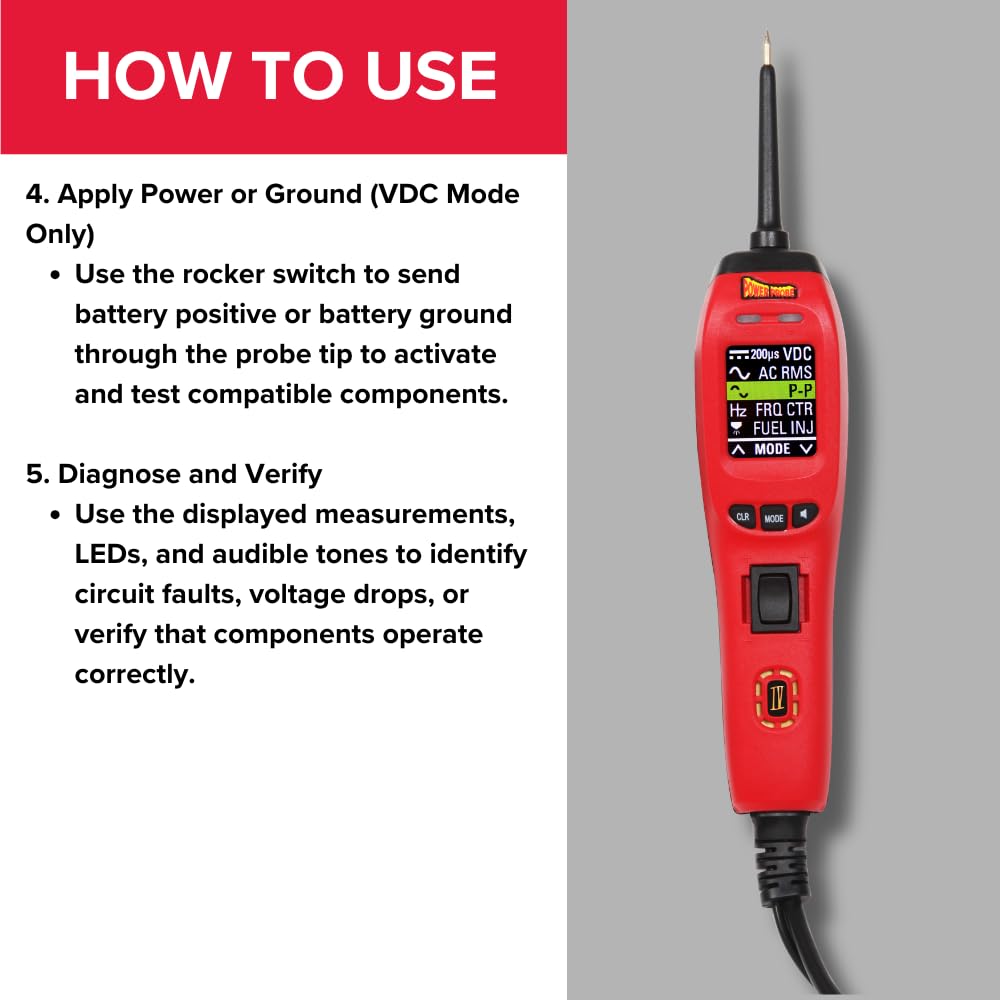

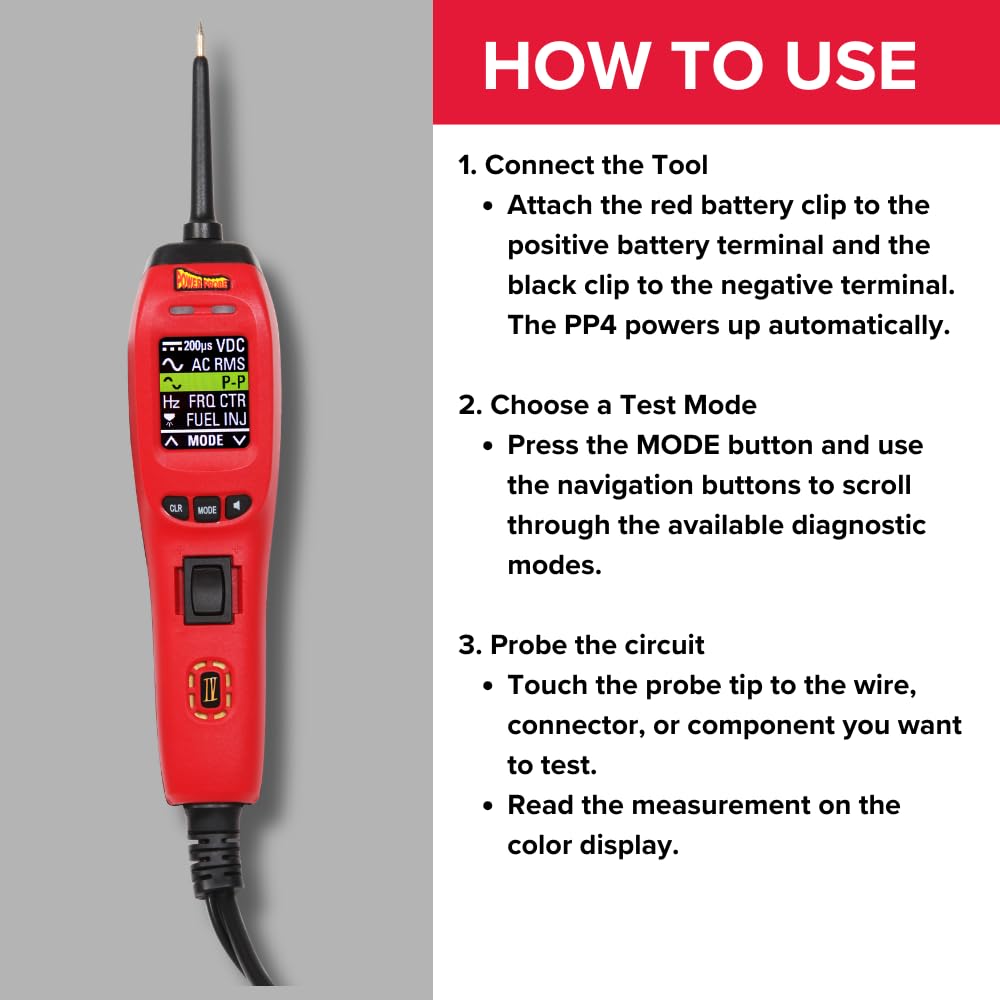

From actuation to measurement: power a component to see it work, then read its volts, resistance or signal — without picking up a second tool.
Technical specifications
| Function | Range / value |
|---|---|
| Diagnostic modes | 8 (DC V, AC V RMS, AC P-P, resistance, frequency, pulse width, fuel injector, module driver) |
| System voltage | 12V to 24V |
| Operating voltage | 8 VDC to 30 VDC |
| Max tip voltage | 450V |
| Computer safe | 0.1mA floating tip |
| Voltage measurement | -100 to 200 VDC / VAC (70 VAC RMS) |
| Resistance | 0.1 Ohm to 10 kOhm |
| Frequency | 1Hz to 9999Hz |
| Circuit breaker | 8 Amp thermal, auto-reset |
| Cable length | 7 m (23 ft) |
| Display | Colour LCD with back light, LED work lights |
| Operating temperature | -20C to 50C |
What's in the box
1× Power Probe IV (PP4) circuit tester · 23 ft (7 m) heavy-duty power lead · Battery clip set · Alligator clip adapter · 3 in (8 cm) removable probe tip · Carrying case · Instruction manual
