Power Probe

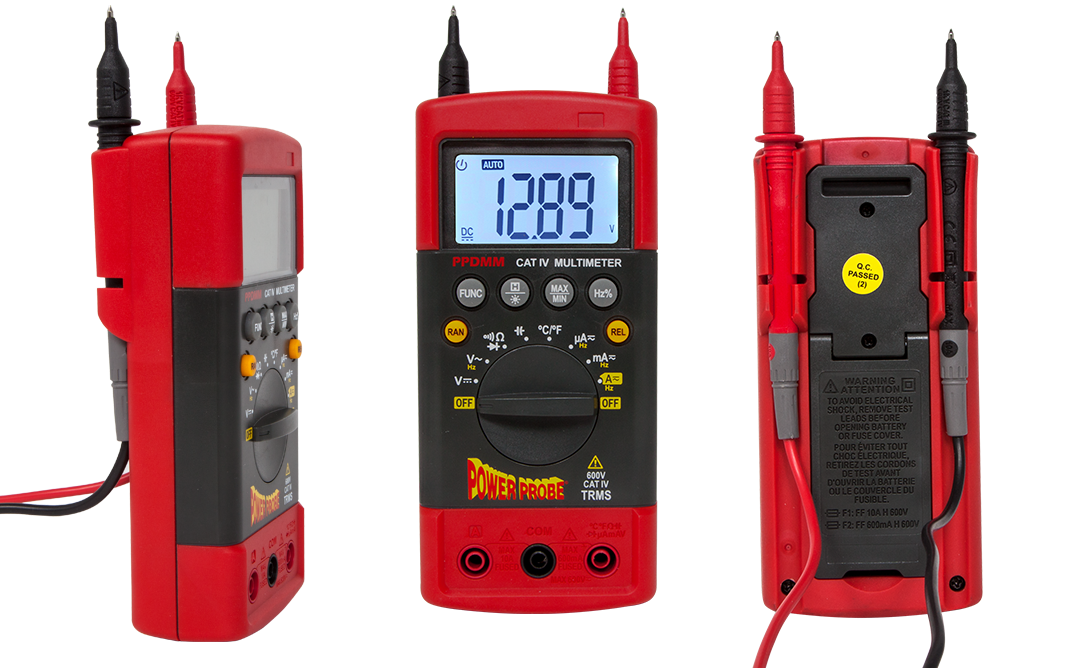

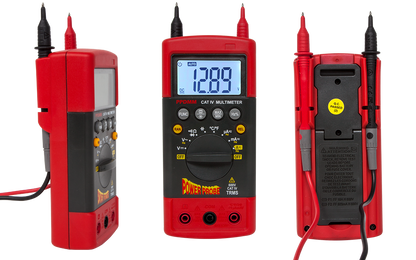

Power Probe PPDMM Multimeter
Power Probe PPDMM Multimeter
Regular price
£154.99
Regular price
Sale price
£154.99
UK Taxes included. Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Fast shippingDispatched in 24-48h
Pro warrantyBacked by Power Probe
Expert supportReal technicians
Share
What it is
CAT-IV 600V multimeter. Built for the bay.
The Power Probe PPDMM is a Hybrid Safe CAT-IV 600V digital multimeter built for automotive diagnostics. A large 6000-count backlit LCD, auto-ranging and a rugged rubberized housing keep it easy to read and tough enough for daily shop use. It measures AC/DC voltage, current, resistance, frequency and capacitance, and ships with a K-Type thermocouple probe for temperature checks on exhaust, HVAC and cooling systems.
Features & functions
- CAT-IV 600V hybrid safe rating (also CAT III 1000V, IEC61010-1) for automotive high-voltage work
- AC/DC voltage, current, resistance, frequency and capacitance from a single meter
- Diode and continuity testing built in
- Data Hold, Min/Max capture and Relative measurement for tracking readings hands-free
- Included K-Type thermocouple probe reads -20°C to 1000°C
- Magnetic hanging strap for hands-free use under the hood
- 15-minute auto power-off and loud indication tones
Fused inputs: F600mA/600V and F10A/600V fuses protect the meter if a test lead is plugged into the wrong jack.
Technical specifications
| Function | Range / value |
|---|---|
| Display | 3¾ digit LCD, 6000 counts, backlit, auto-ranging |
| DC/AC Voltage | 600V |
| DC/AC Current | 10A |
| Resistance | 60MΩ |
| Capacitance | 60mF |
| Frequency | 10kHz |
| Temperature | -20°C to 1000°C (via K-Type probe) |
| Safety rating | CAT IV 600V, CAT III 1000V — IEC61010-1 |
| Power supply | 3 x 1.5V AAA batteries |
| Dimensions | 160 x 74 x 49 mm |
| Weight | 482 g |

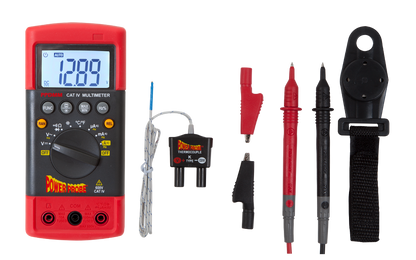

What's in the box
1× PPDMM Digital Multimeter · 2× 1.5m (5ft) Test Leads · 2× Alligator Clips · 1× K-Type Thermocouple Probe · 1× Magnetic Hanging Strap · 3× AAA Batteries · 2× Spare Fuses
