Power Probe

Power Probe PPAMPTIP Amp Adapter Tip for Power Probe 3, 3EZ, 4, Maestro and Basic

Power Probe PPAMPTIP Amp Adapter Tip for Power Probe 3, 3EZ, 4, Maestro and Basic

£52.99
£52.99
Sale Sold out
UK Taxes included. Shipping calculated at checkout.
Fast shippingDispatched in 24-48h
Pro warrantyBacked by Power Probe
Expert supportReal technicians
What it is

See the current. Find the drain.

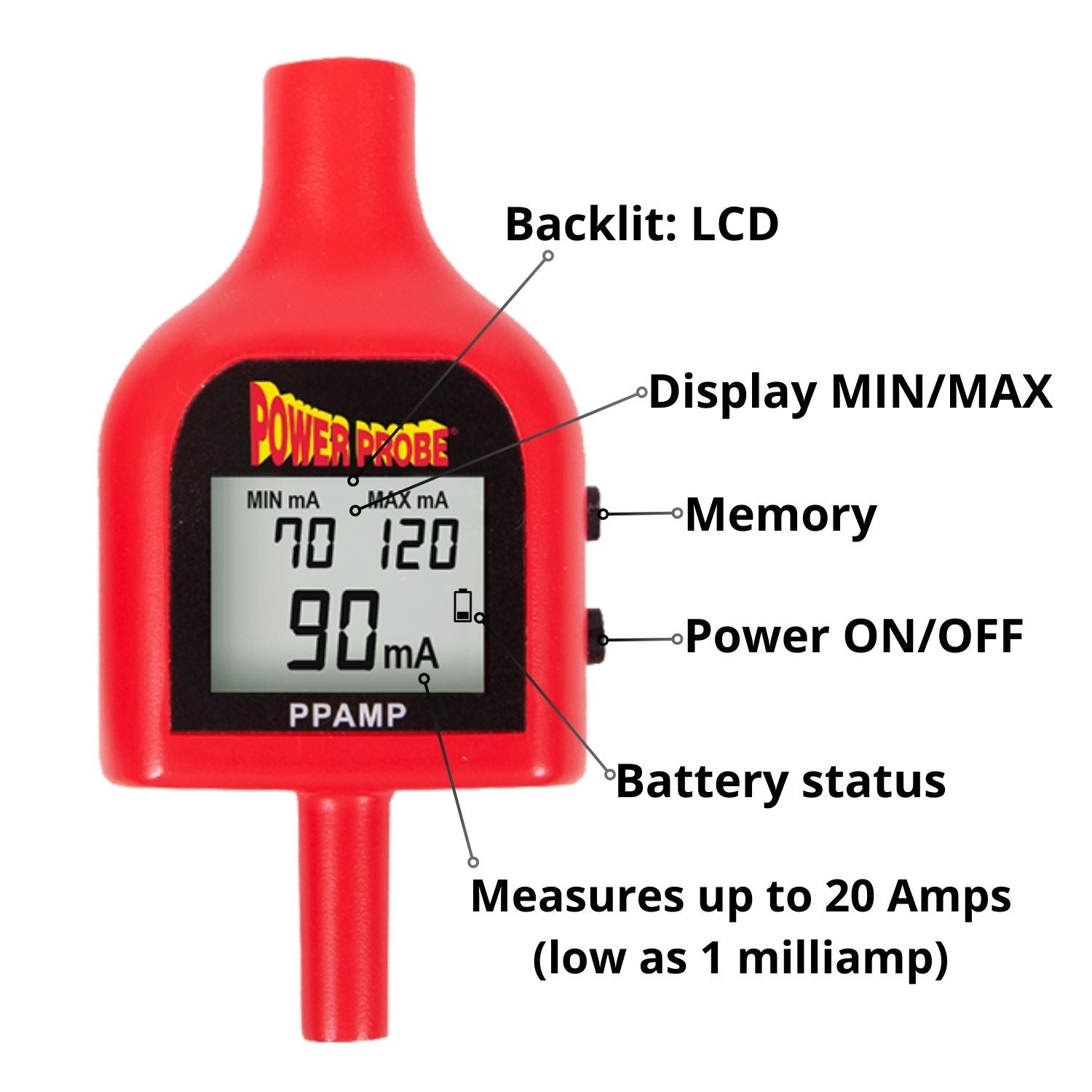

The Power Probe PPAMP Amp Adapter is a plug-in adapter tip that turns a compatible Power Probe circuit tester into an inline DC current meter. Read live current on its backlit LCD from as low as 1mA up to a 20A display, with MIN and MAX held in memory to catch spikes and intermittent draws. It is the tip to reach for when the question is how much a circuit is really pulling, from a parasitic key-off drain to a full load.

// Function 01
DC Current
1mA up to a 20A display, 10A max input
// Function 02
MIN / MAX
Memory catches peaks and intermittents
// Function 03
Backlit LCD
Auto backlight for dark engine bays
// Function 04
CR2032
Battery status and auto-shutdown
Features & functions
  • Inline DC current meter: plugs into the 4mm banana tip of a compatible Power Probe circuit tester and reads live current draw
  • Wide range from 1mA up to a 20.0A display value, with a 10A maximum input, for parasitic drains and larger load currents
  • MIN and MAX values held in memory to catch current spikes and intermittent draws, cleared from the button
  • Backlit LCD with an auto-on backlight in low light, plus a battery-status symbol on the display
  • Auto-shutdown after about 10 minutes of no use to preserve the CR2032 battery
  • DC-only, auto-ranging meter (no True RMS) for 12V automotive circuits; over-range shows OL
From milliamps to amps: the same compact tip reads a key-off parasitic drain and a running load current, so one accessory covers battery-drain hunting and everyday load checks.
Technical specifications
Function Range / value
Function Inline DC current (auto-range, no True RMS)
Range 1 0mA - 999mA, resolution 1mA
Range 2 1.00A - 9.99A, resolution 0.01A
Accuracy ±(3% + 3d)
Maximum display 20.0A
Maximum input current 10A DC
Over-range OL
Display Backlit LCD with MIN / MAX memory
Auto-shutdown About 10 minutes
Power 1 x CR2032 3V (included)
Standards UL 61010-1 / 61010-2-030, CSA C22.2, CE
Compatibility Power Probe III, IV, Master, ECT3000 (4mm banana tip)
Dimensions / weight 44 x 89 x 21mm / about 38.5g
Warranty 2 years limited
What's in the box
1× Power Probe PPAMP Amp Adapter (DC current adapter tip) · User manual · 1× CR2032 3V battery
Downloads
User manual (PDF)
