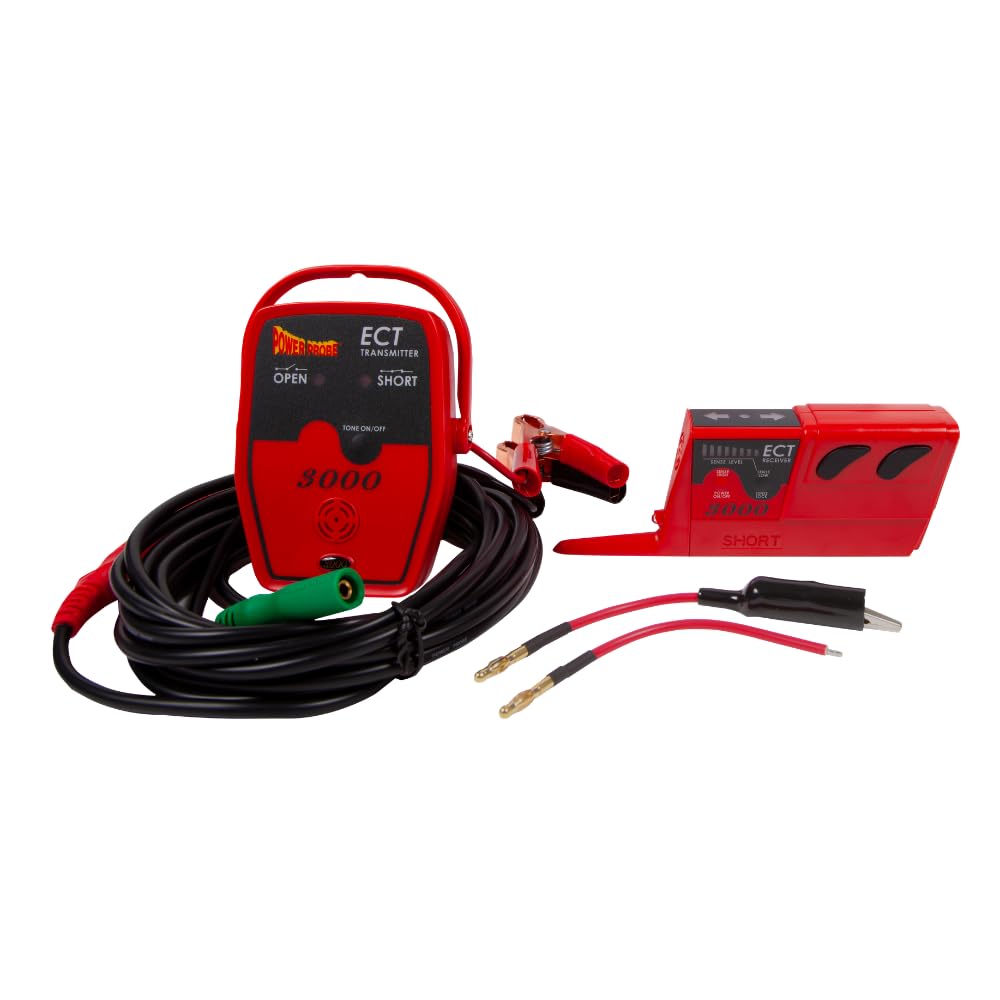

• Power Probe ECT3000B electronic short circuit tracer, transmitter and receiver

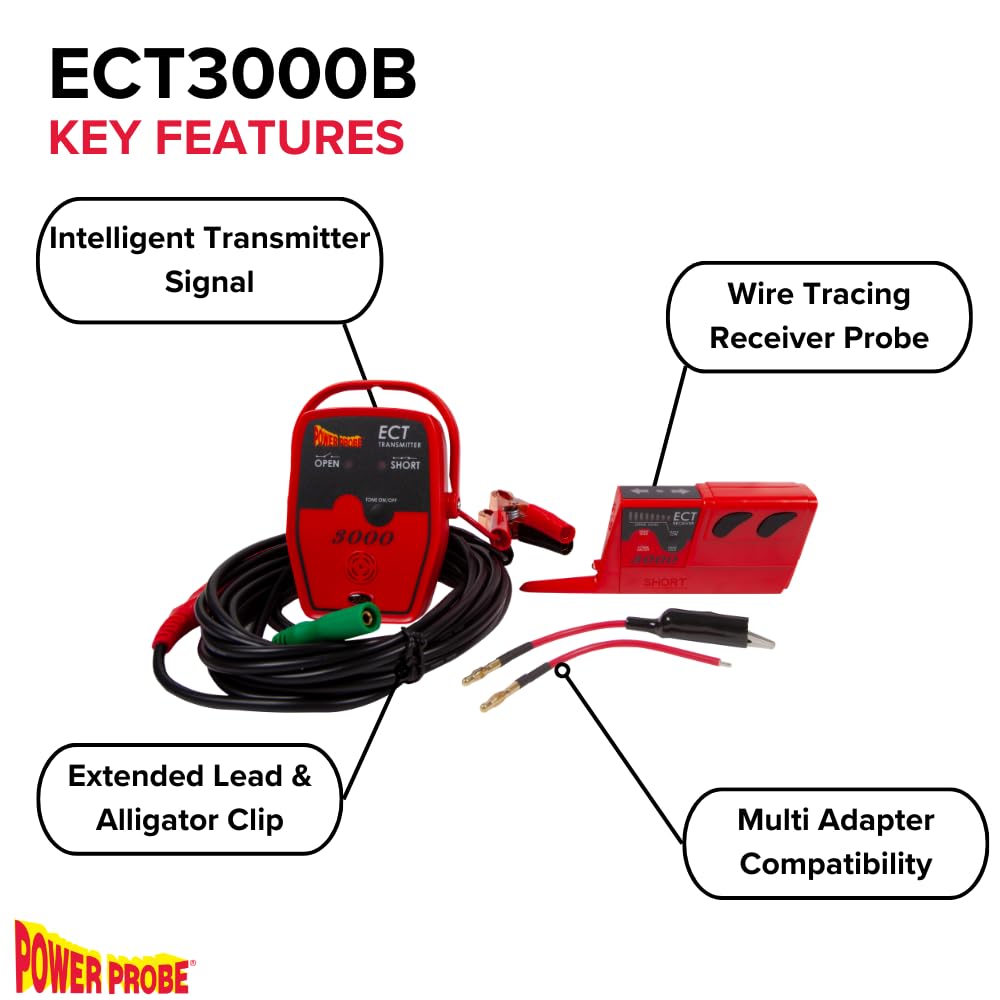

  • ECT3000B digital receiver with sensitivity LED bar graph
  • ECT3000B transmitter connected to a vehicle battery
  • ECT3000B tracing a short circuit behind interior trim
  • ECT3000B receiver direction-to-fault LED indicators
  • Power Probe ECT3000B tool-only kit contents
1 6

Power Probe

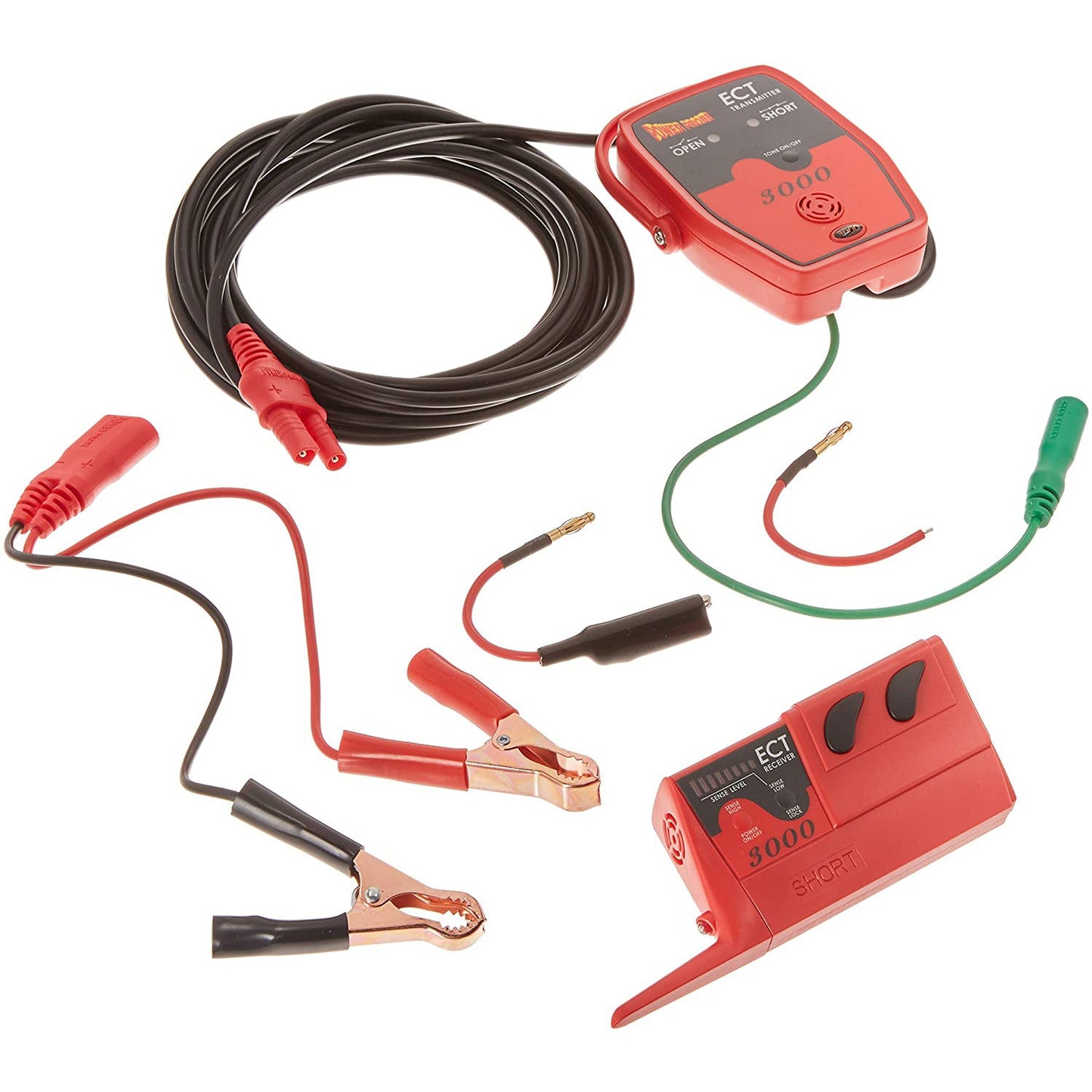

Power Probe ECT3000B Short Circuit Tracer - Tool Only

Power Probe ECT3000B Short Circuit Tracer - Tool Only

£147.85
£147.85
Sale Sold out
UK Taxes included. Shipping calculated at checkout.
Fast shippingDispatched in 24-48h
Pro warrantyBacked by Power Probe
Expert supportReal technicians
What it is

Find the fault. Keep the trim on.

The Power Probe ECT3000B is an electronic circuit tracer that locates short circuits, open circuits and breaks in wiring without removing plastic panels, molding, trim or carpet. An intelligent transmitter injects a signal into the circuit and a digital receiver leads you straight to the fault with visual navigation and audible tones — on 12–24V DC systems. Tool-only configuration.

// Function 01
Trace Shorts
Follow shorts to ground with direction-to-fault LEDs
// Function 02
Find Opens
Locate open circuits and breaks behind trim
// Function 03
Battery Drains
Track parasitic current draw to its source
// Function 04
Intermittent
Wiggle/flex test flags intermittent contacts
Features & functions
  • Locates short-to-ground faults, open circuits, switches and breaks in wiring without dismantling the interior
  • Intelligent transmitter + digital receiver guide you to the fault with LED direction indicators and audible tones
  • 8 sensitivity levels (~1–8 in / 3–20 cm) pinpoint the fault even in dense wire bundles
  • Trace parasitic battery drains and severe current draws back to their source
  • Circuit Wiggle & Flex Test and Tone On/Off help catch intermittent conditions
  • Wire Harness Probe detects the open-circuit signal between bundled wires
  • Works alongside Power Probe III, IV or Hook for direct-contact verification — the 4 kHz tone is audible through those testers
  • Standard 4 mm banana jacks accept other test leads and adapters
Computer-safe: the signal lead is limited to 100 mA to protect sensitive vehicle modules — still, unplug electronic modules before short-circuit verification.
Technical specifications
Function Range / value
Works on 12 – 24 V DC systems
Transmitter operating voltage 6 – 48 V DC
Working frequency 4 kHz
Transmitter working current < 200 mA
Sensitivity 8 levels, ~1 – 8 in (3 – 20 cm)
Receiver power 2 × AAA, auto shut-off after 10 min
Power lead 20 ft (≈ 6 m)
What's in the box
1× SMART transmitter · 1× digital SMART receiver · 1× battery clip set · 1× alligator clip lead · 1× universal wire adapter · 2× AAA batteries · 1× instruction manual
