Power Probe

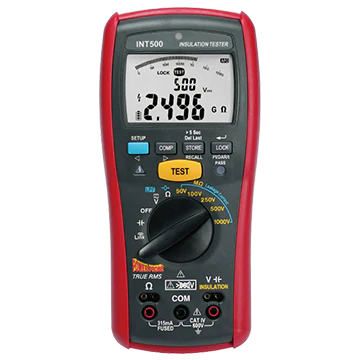

Power Probe INT500 Insulation Tester
Power Probe INT500 Insulation Tester
Regular price
£559.93
Regular price
Sale price
£559.93
UK Taxes included. Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Fast shippingDispatched in 24-48h
Pro warrantyBacked by Power Probe
Expert supportReal technicians
Share
What it is
Insulation tester. True RMS multimeter.
The Power Probe INT500 is a professional insulation resistance tester and a full True RMS digital multimeter in one rugged, Bluetooth-enabled instrument. Apply 50V to 1000V to read insulation up to 200 GOhms, run timed PI and DAR routines to judge insulation health, then switch to everyday measurement of AC/DC voltage, frequency, capacitance and continuity — without swapping tools.
// Function 01
Insulation Test
50-1000V, up to 200 GOhm
// Function 02
PI & DAR
Timed tests judge insulation over time
// Function 03
True RMS Meter
AC/DC 600V, frequency, capacitance
// Function 04
Bluetooth
Send readings to a paired device

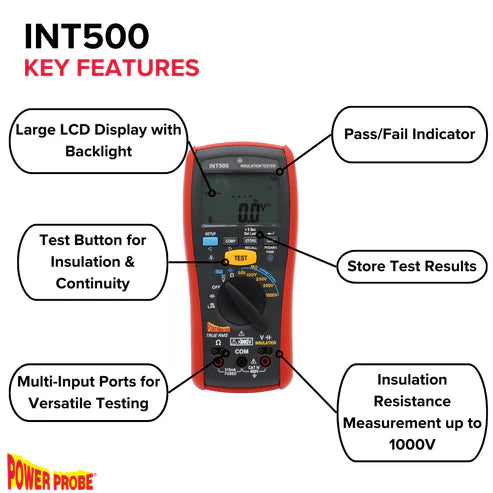

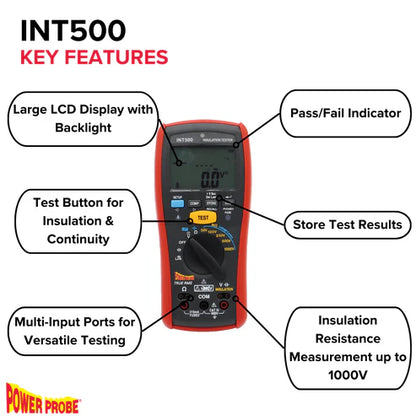

Features & functions
- Five insulation test voltages — 50, 100, 250, 500 and 1000V — reading insulation resistance up to 200 GOhms at 1000V; range depends on selected test voltage
- Timed PI (Polarization Index) and DAR (Dielectric Absorption Ratio) routines to assess insulation condition over time
- True RMS digital multimeter: AC and DC voltage to 600V, frequency, low-pass filter, capacitance and earth-bond continuity
- Bluetooth data link sends measurements to a connected device
- Live-circuit detection inhibits the insulation test above 30V, with automatic capacitor discharge after each test
- 4000-count display, CAT IV 600V / CAT III 1000V rated, IP40 and 4 ft drop protection for field and workshop use
One instrument, two jobs: carry out insulation and safety testing on cables, motors and installations, then handle routine electrical measurement — all from a single meter.
Technical specifications
| Function | Range / value |
|---|---|
| Display | 4000-count digital, True RMS |
| Insulation test voltages | 50V, 100V, 250V, 500V, 1000V |
| Insulation resistance | up to 200 GOhm (1000V / 200 GOhm) |
| Timed insulation tests | PI, DAR, timer |
| AC voltage (True RMS) | 600V, 50-400Hz response |
| DC voltage | 600V |
| Frequency | up to 1000Hz |
| Capacitance | 100nF - 10uF |
| Earth-bond / continuity | 40 Ohm - 40 kOhm |
| Live-circuit detection | inhibits test if >= 30V AC/DC |
| Connectivity | Bluetooth |
| Safety rating | CAT IV 600V / CAT III 1000V |
| Ingress protection | IP40 |
| Power | 4 x AA (fitted) |
| Dimensions / weight | 96 x 207 x 54mm / 630g |
What's in the box
1× Power Probe INT500 insulation tester · Test leads with alligator clips · Carrying case · User manual · 4× AA batteries (pre-installed)
