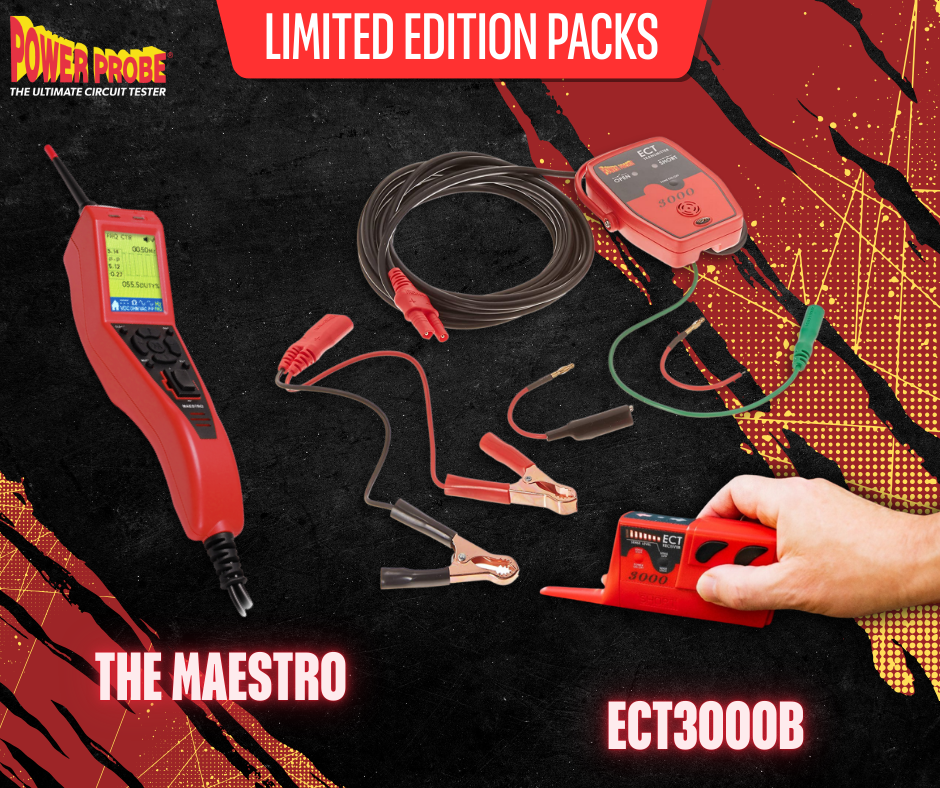

Power Probe Limited Edition Pack – The Maestro + ECT3000B

Power Probe Limited Edition Pack – The Maestro + ECT3000B

Designed for technicians who need both advanced powered testing and precise wire tracing, this Limited Edition Pack pairs the PPTM01AS The Maestro with the ECT3000B Short/Open Circuit Finder. Use Maestro to measure, activate and document electrical tests, then use the ECT3000B to trace shorts-to-ground, opens and intermittent faults without unnecessarily removing trim, moulding or carpet.

• Two-tool diagnostic workflow: combine component activation and circuit measurement with wire tracing and fault location to move from symptom to root cause more efficiently.

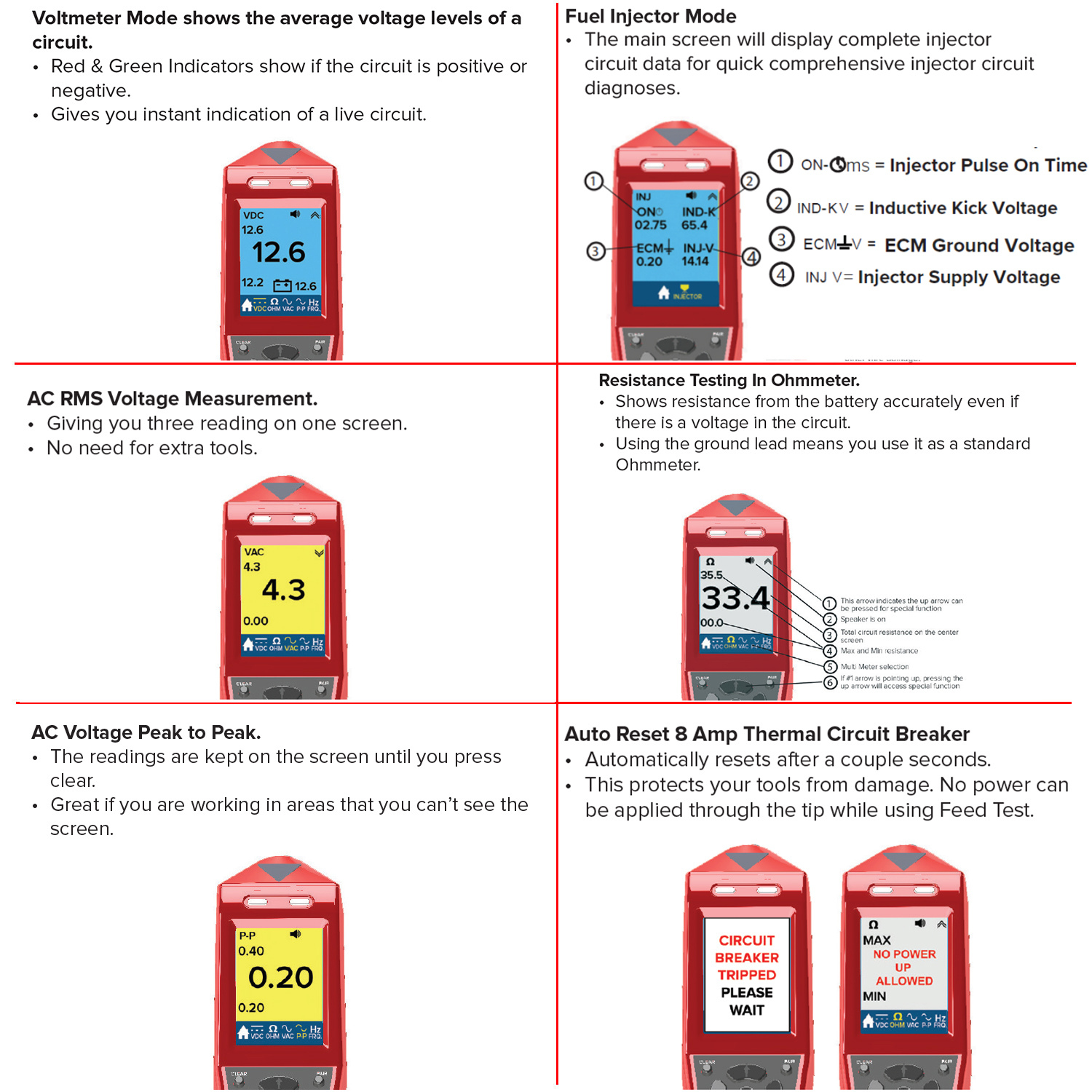

• The Maestro advanced testing: measures DC and AC TRMS including peak-to-peak/min/max, plus resistance, frequency and duty cycle; can also apply battery power or ground at the probe tip for functional checks.

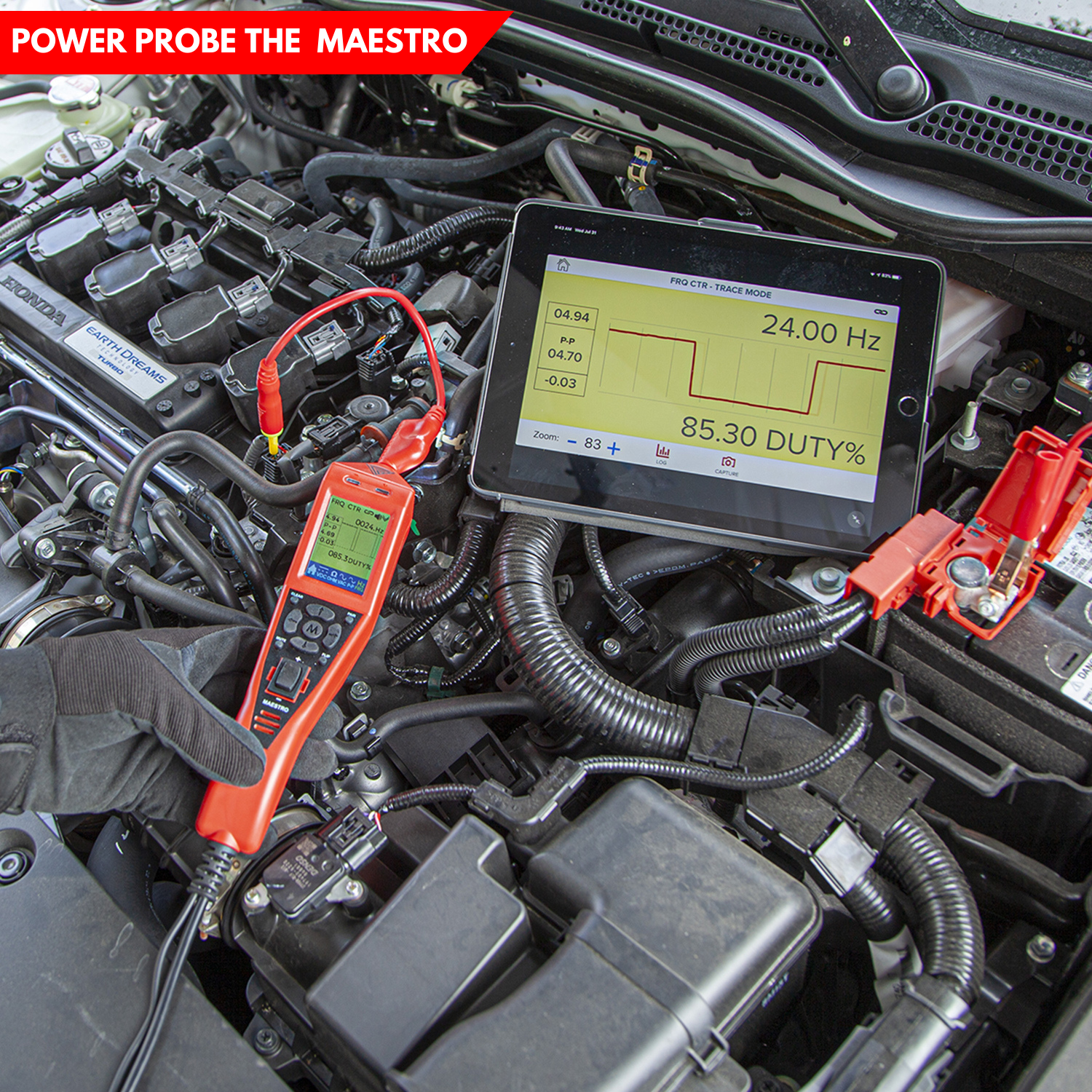

• Trace Mode + app support: Maestro offers scope-like visualisation and supports streaming or recording traces and screenshots through the Power Probe TEK Pro Series App for documenting electrical faults.

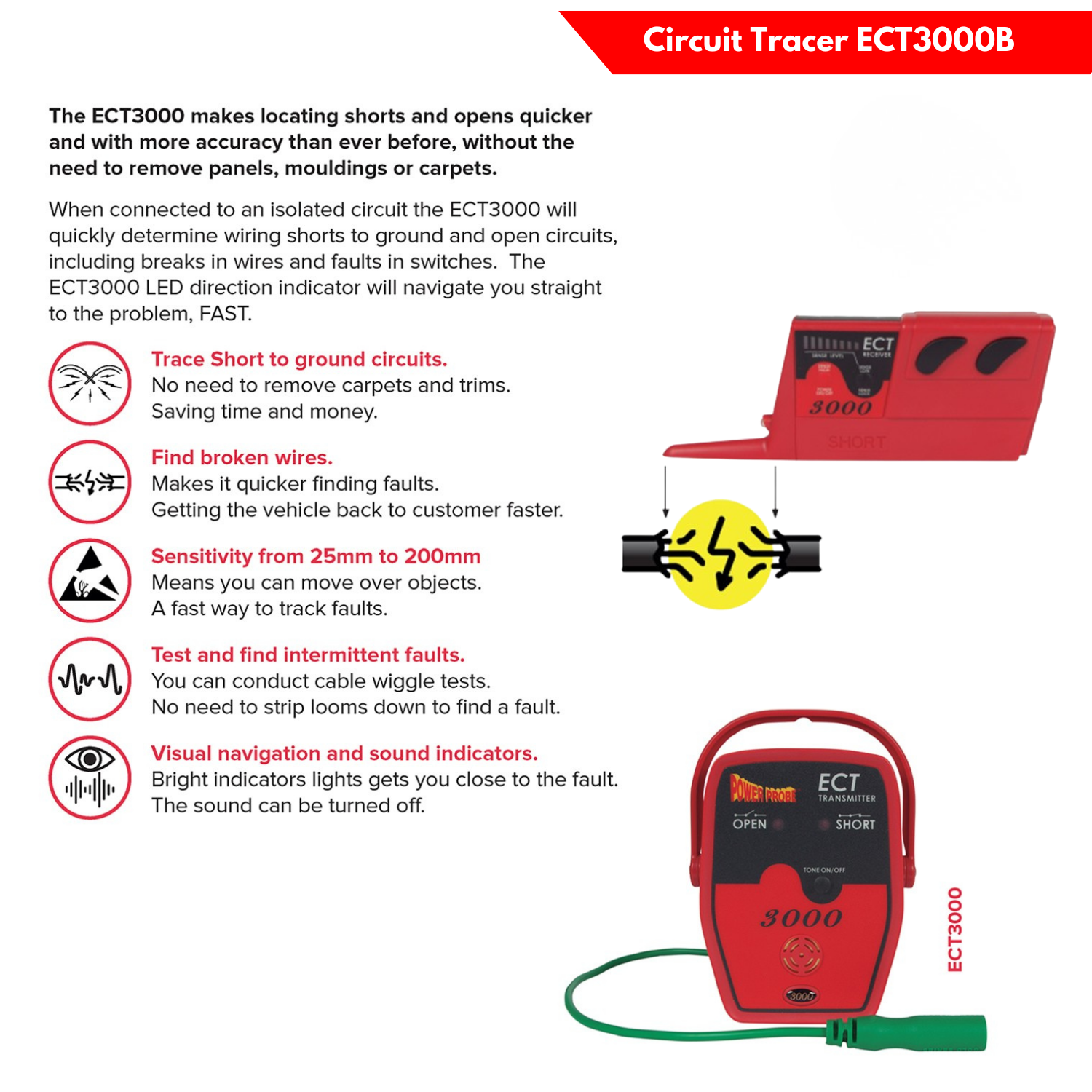

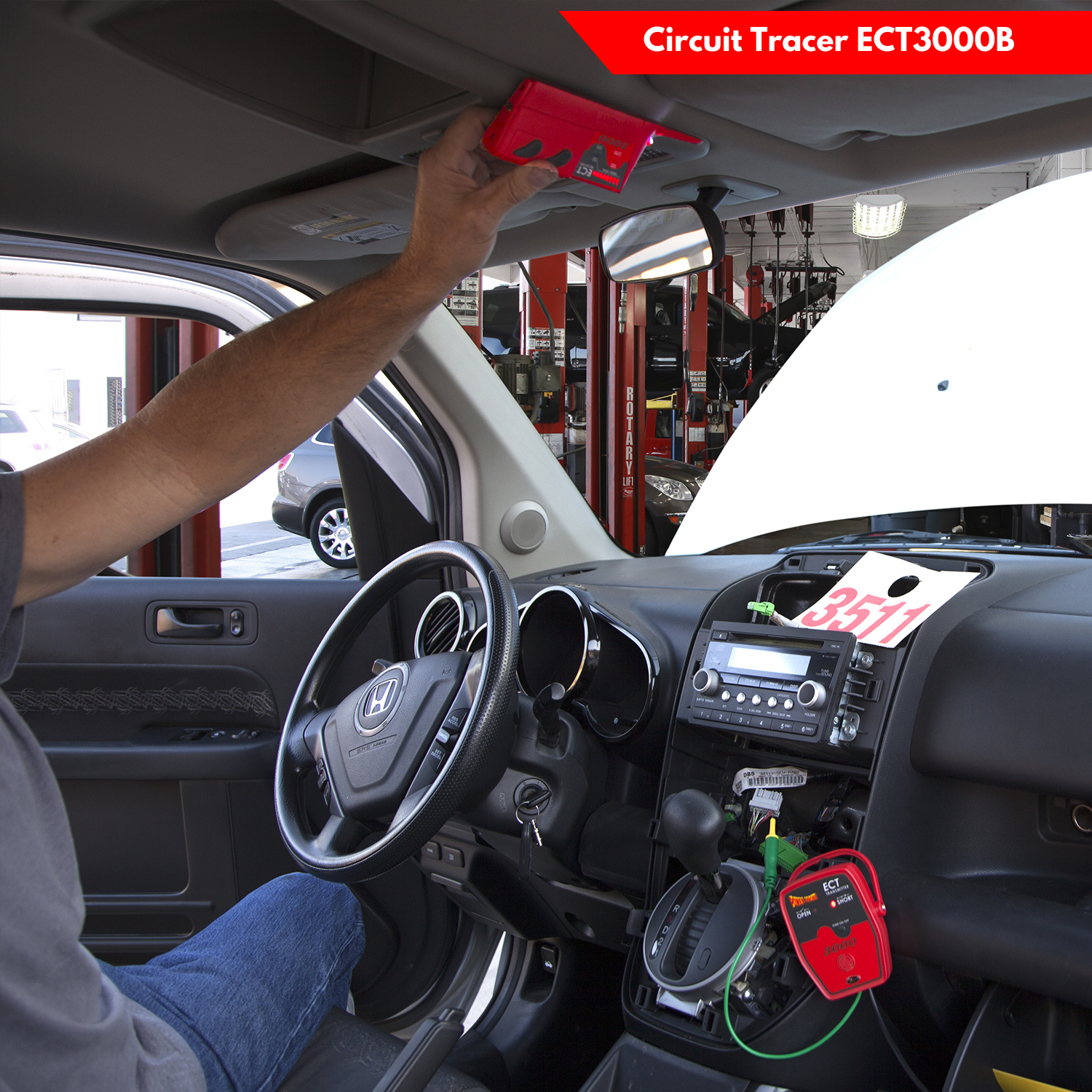

• ECT3000B circuit tracing: intelligent transmitter/receiver system follows harness routes with visual navigation and sound indicators; adjustable sensitivity 1–8 in (3–20 cm) helps narrow the fault area when tracing shorts, opens and wiring breaks.

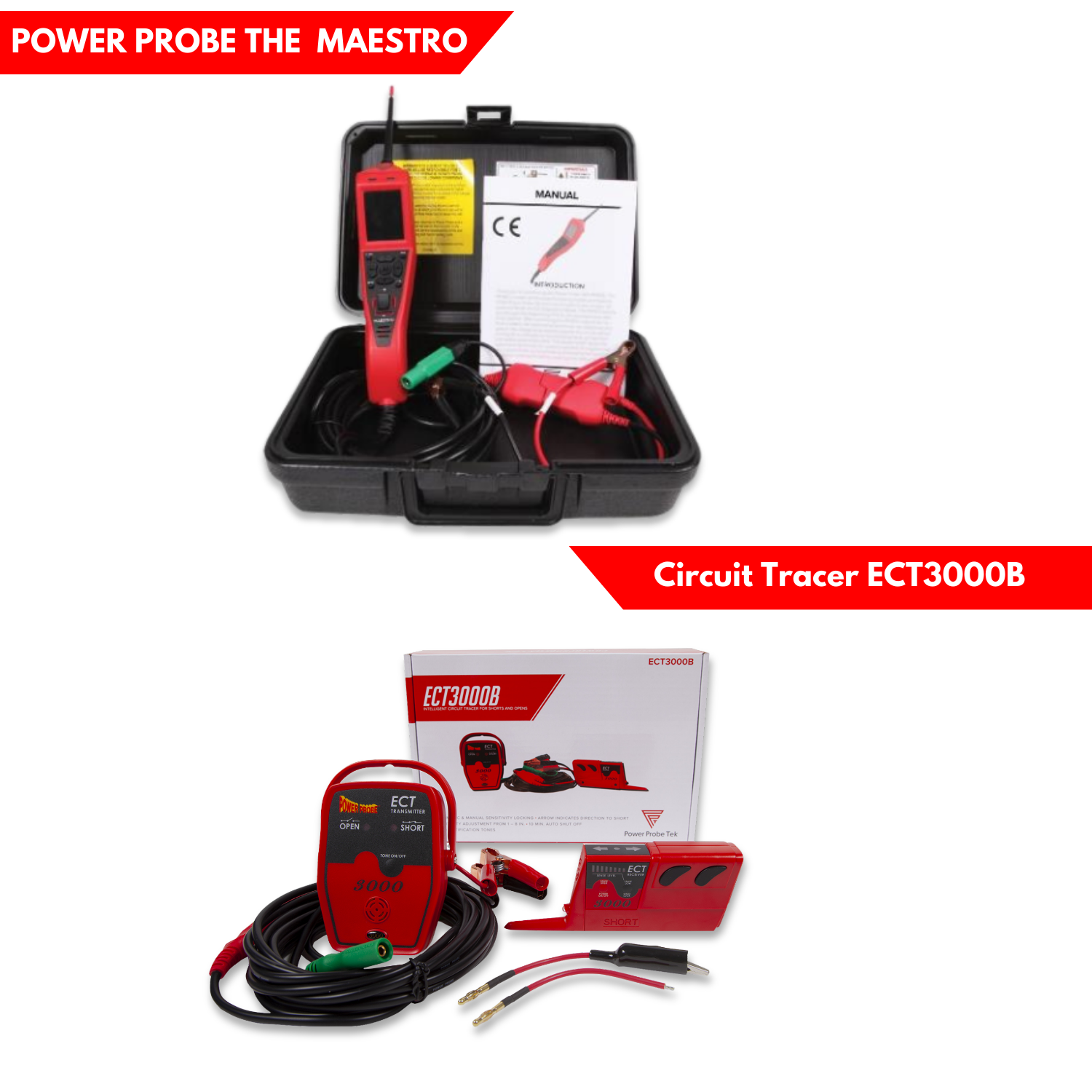

• Workshop-ready bundle: Maestro features a colour LCD, LED work lights and a self-resetting 8 Amp thermal circuit breaker; ECT3000B adds a receiver LED work light, ergonomic housing and 10-minute auto shut-off. Maestro operates on 12V or 24V systems; ECT3000B tool-only set includes receiver/tracer, transmitter, PPTK0007 and PPTK0008.
