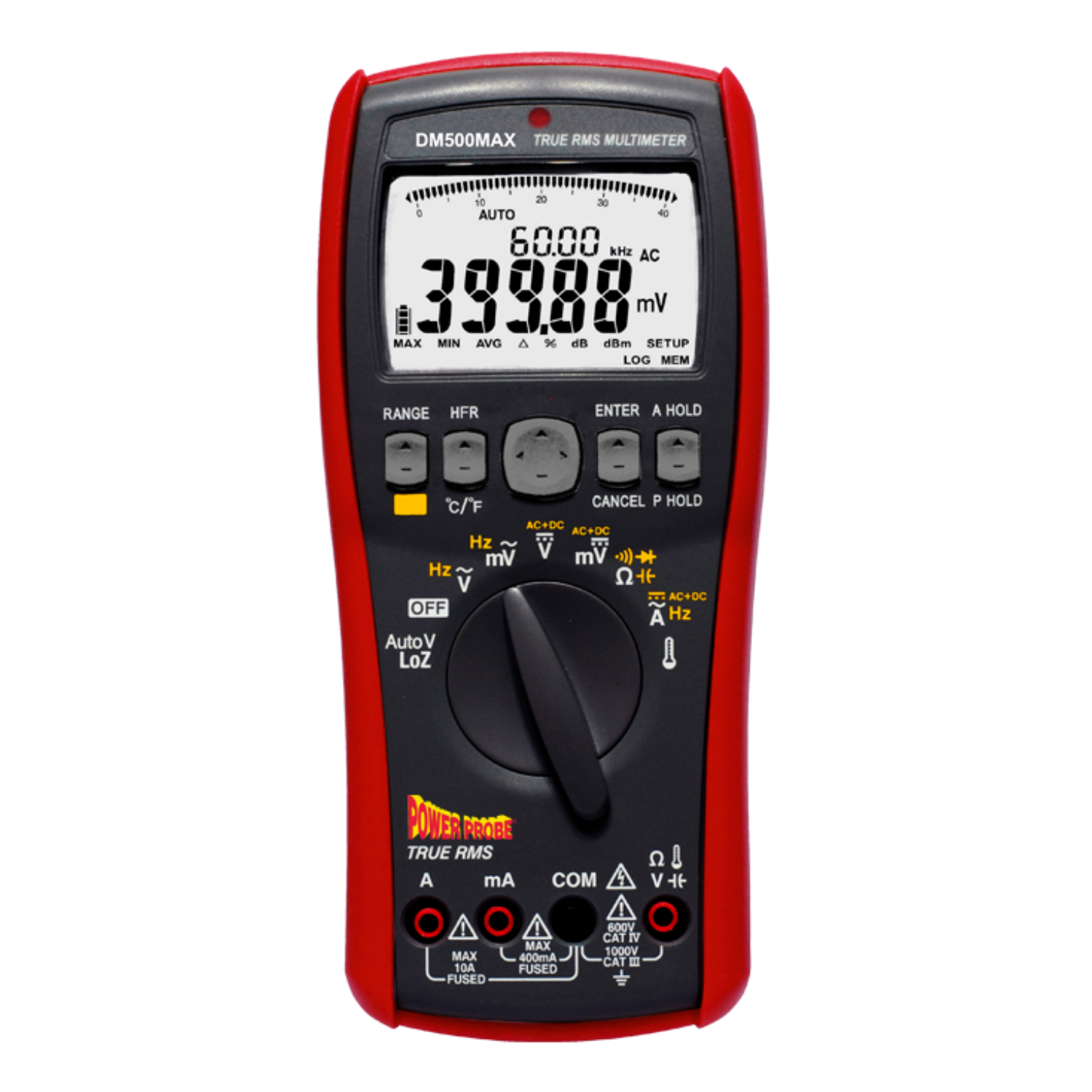

• Power Probe DM500MAX TRMS logging multimeter front panel and dual display
  • Power Probe PPDM500MAX Multimeter – Display and Controls Detail
  • DM500MAX rotary switch and input terminals
  • DM500MAX dual display showing a true-RMS reading
  • DM500MAX measuring voltage on an industrial circuit
  • DM500MAX with K-type thermocouple temperature probe
1 6

Power Probe

Power Probe PPDM500MAX Automotive Multimeter

Power Probe PPDM500MAX Automotive Multimeter

£350.83
£350.83
Sale Sold out
UK Taxes included. Shipping calculated at checkout.
Fast shippingDispatched in 24-48h
Pro warrantyBacked by Power Probe
Expert supportReal technicians
What it is

Read it true. Log it all.

The Power Probe DM500MAX is a high-performance true-RMS digital multimeter built for demanding industrial and automotive work. It pairs a 40,000-count dual display with internal data logging, Auto LoZ low-impedance voltage and HFR high-frequency rejection, plus a full set of modes — voltage, current, resistance, frequency, continuity, diode, capacitance and K-type temperature.

// Function 01
True RMS 40k
High-res dual display for accurate AC
// Function 02
Auto LoZ
Kill ghost voltage on unloaded conductors
// Function 03
HFR Filter
Read the real signal through the noise
// Function 04
Data Logging
Capture over time + MAX/MIN/AVG
Features & functions
  • True RMS with a 40,000-count dual display for accurate, high-resolution readings on distorted AC
  • Auto LoZ low-impedance mode eliminates ghost/phantom voltage on long unloaded conductors (400V / 1000V)
  • HFR high-frequency rejection filters noise to read the underlying signal on PWM and switching circuits
  • Internal data logging plus MAX/MIN/AVG capture for monitoring and intermittent faults
  • Full suite: AC/DC voltage to 1000V, AC/DC current to 10A, resistance to 40MΩ, frequency to 100kHz, capacitance, continuity and diode
  • K-type temperature from −200°C to +1200°C
  • Auto-backlight sense point and a protective holster for bench and field use
Industrial-grade resolution: a 40,000-count dual display with true-RMS and logging captures fine detail and tracks how a reading changes across a job.
Technical specifications
Function Range / value
Display 40,000-count dual display, True RMS
AC / DC voltage 40 mV – 1000 V
Auto LoZ 400 V / 1000 V
AC / DC current 40 mA – 10 A
Frequency 400 Hz – 100 kHz
Resistance 400 Ω – 40 MΩ
Temperature (K-type) −200 °C to 1200 °C
Other Capacitance, continuity, diode
Size 52 × 83 × 188 mm (with holster)
What's in the box
1× Power Probe DM500MAX multimeter with holster · 1× test lead set · 1× K-type thermocouple probe · batteries · 1× user manual
Downloads
User manual (PDF) Datasheet (PDF)
