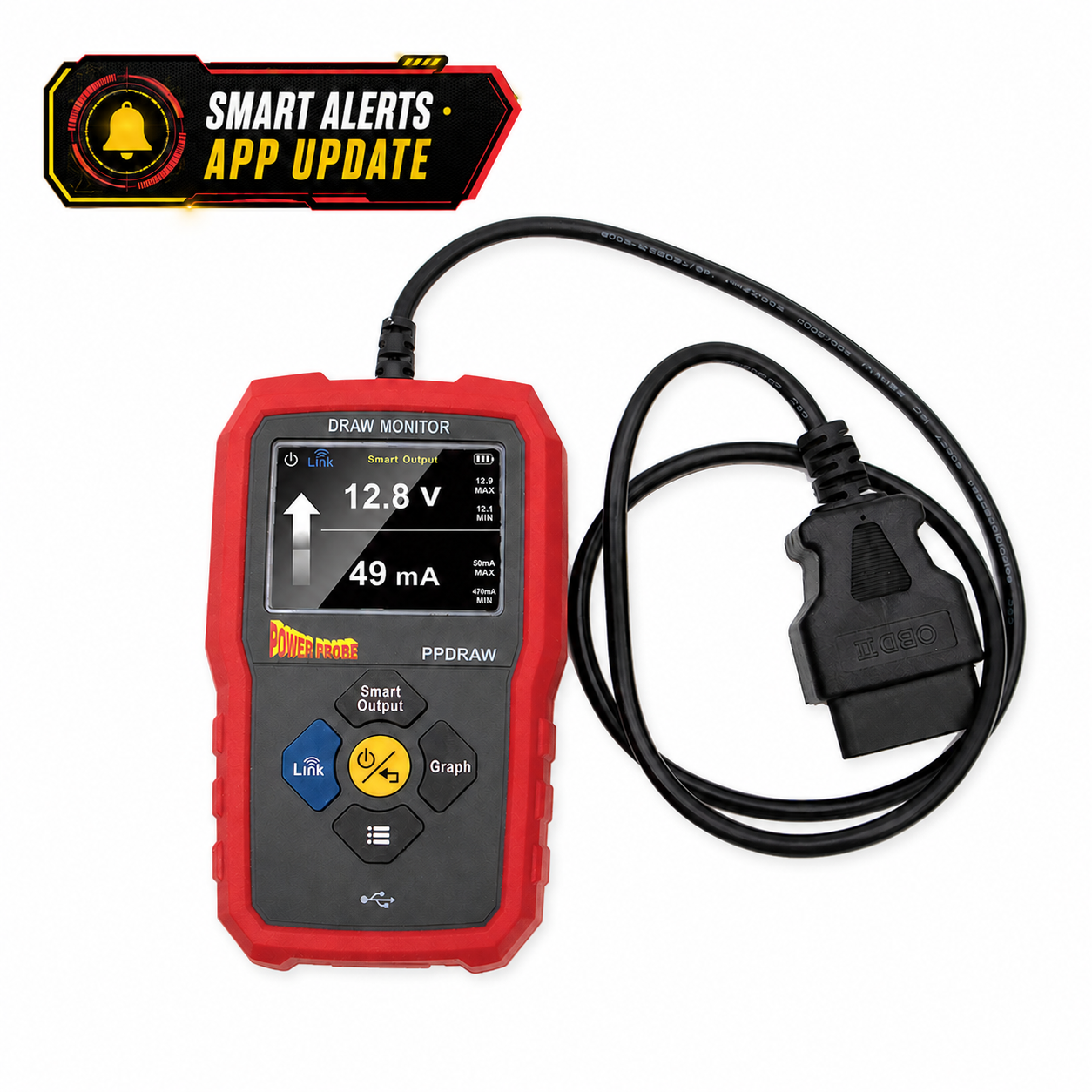

• Power Probe Draw Monitor with OBDII cable and colour TFT screen
  • PPDRAW-1
  • Power Probe PPDRAW – Why Choose It for Battery Drain Testing
  • Power Probe PPDRAW – Vehicle Diagnostic Use Cases
  • Power Probe PPDRAW – Step-by-Step Usage Guide
  • Power Probe PPDRAW – What's Included in the Package
  • Power Probe PPDRAW Parasitic Drain Monitor for Automotive Battery Testing
1 7

Power Probe

Power Probe PPDRAW Parasitic Drain Monitor

Power Probe PPDRAW Parasitic Drain Monitor

£183.55
£183.55
Sale Sold out
UK Taxes included. Shipping calculated at checkout.
Fast shippingDispatched in 24-48h
Pro warrantyBacked by Power Probe
Expert supportReal technicians
What it is

Plug in. Find the drain.

The Power Probe Draw Monitor plugs into the OBDII port to monitor battery voltage and parasitic current draw — and to keep the vehicle powered while you replace the battery. It reads draw up to 10A, graphs voltage and amperage on a colour TFT screen, and logs data wirelessly to the Power Probe Link app over Bluetooth.

// Function 01
Parasitic Draw
Read key-off current draw up to 10A via OBDII
// Function 02
12V Memory Saver
Keep settings live during a battery swap
// Function 03
Graph Mode
Plot voltage & amperage on the colour TFT
// Function 04
Bluetooth App
Stream & log to the Power Probe Link app
Features & functions
  • Monitors battery voltage and parasitic draw up to 10A through the OBDII port to find what's killing the battery
  • Smart Output supplies 12V at up to 10A so the car keeps its radio codes, presets and module settings during a battery swap
  • 2.8" colour TFT with graphing mode plots the last ~20 seconds of voltage and current as a live waveform
  • Bluetooth links to the Power Probe Link app (iOS / Android) to stream and data-log readings
  • Adjustable current alarm flags draw above a threshold you set on screen
  • Built-in rechargeable lithium battery with USB-C PD fast charging; over-voltage, over-current and temperature protection
Quantify the drain: read a vehicle's exact key-off current in its sleep state to pinpoint the circuit draining the battery — then graph it to catch intermittent loads.
Technical specifications
Function Range / value
Smart Output (backup power) 12 V, up to 10 A via OBDII
Voltage monitoring 0 – 30 V (1% + 5 dig, 0.1 V)
Current resolution 1 mA (3% + 5 dig)
Display 2.8" colour TFT, 240 × 320
Wireless Bluetooth 5.0 — Power Probe Link app
Built-in battery 18650 Li-ion, 14.4 V / 3000 mAh
Charging USB Type-C, PD fast charge
Interface OBDII (16-pin)
What's in the box
1× Power Probe Draw Monitor (with OBDII cable) · 1× carrying bag · 1× USB-C charging cable (100 cm) · 1× user manual
