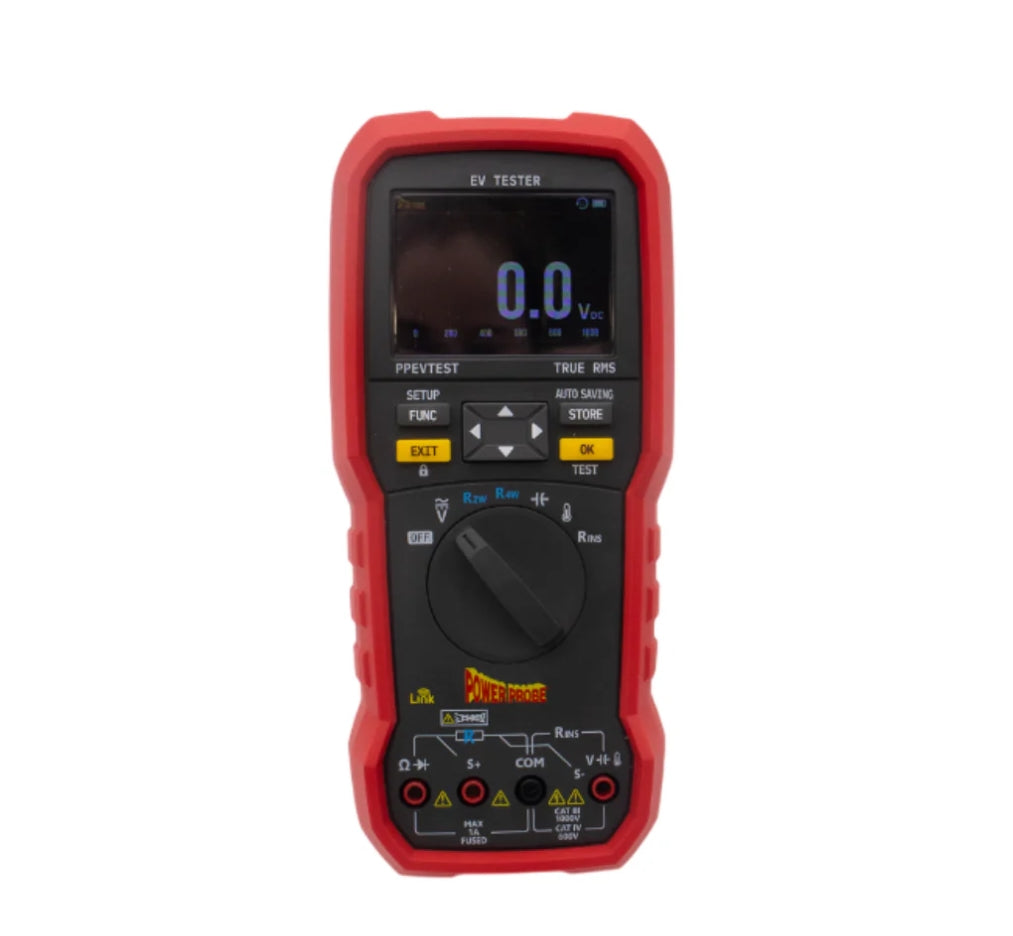

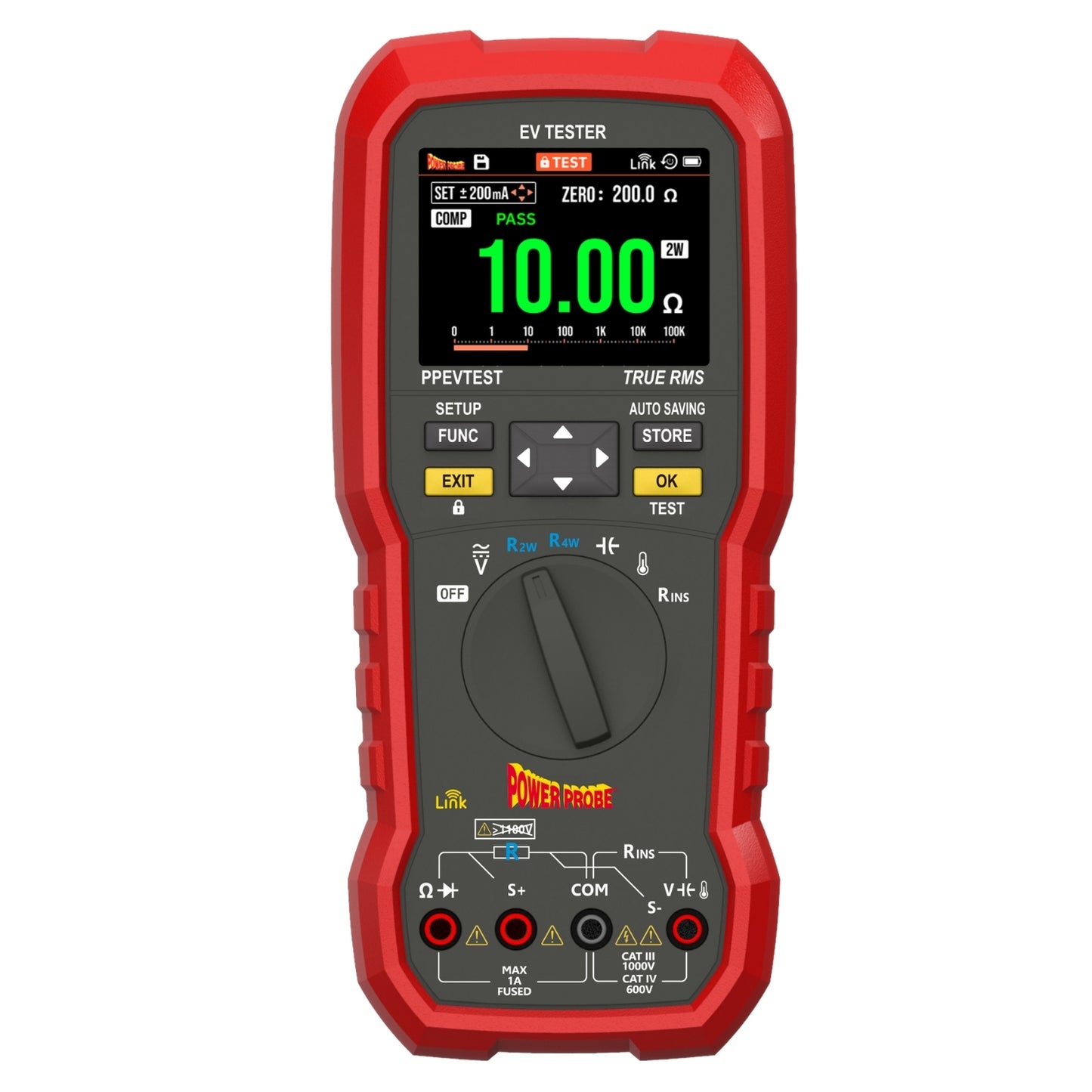

• Power Probe PPEVTEST EV Tester front panel showing the 2.8 inch TFT display, rotary function dial and CAT III 1000V/CAT IV 600V input terminals

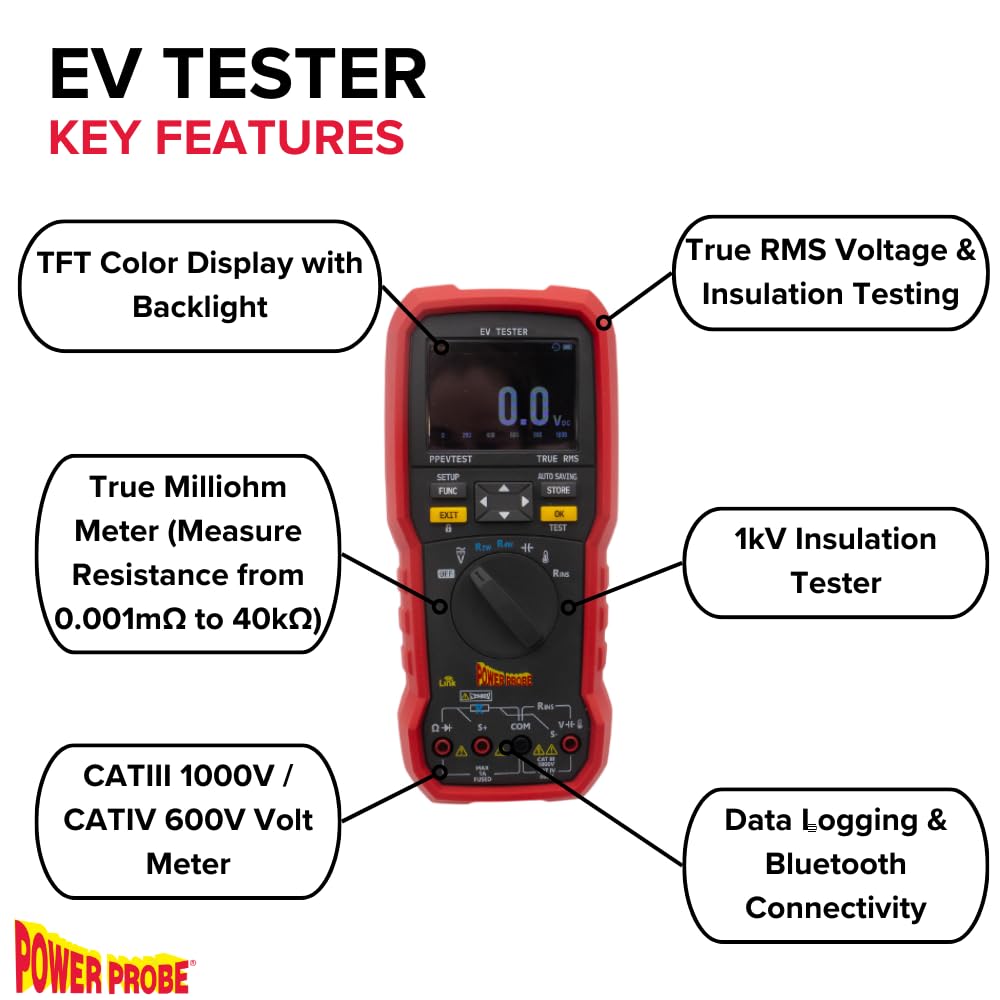

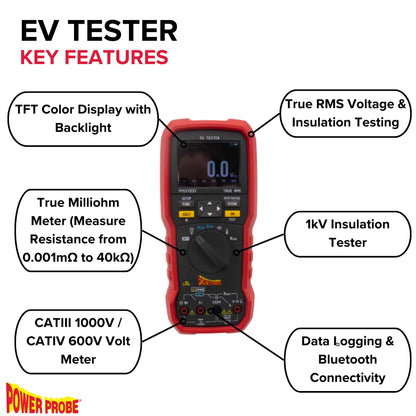

  • Power Probe PPEVTEST key features: TFT colour display, True RMS voltage and insulation testing, true milliohm meter, CAT III/IV rating, Bluetooth data logging

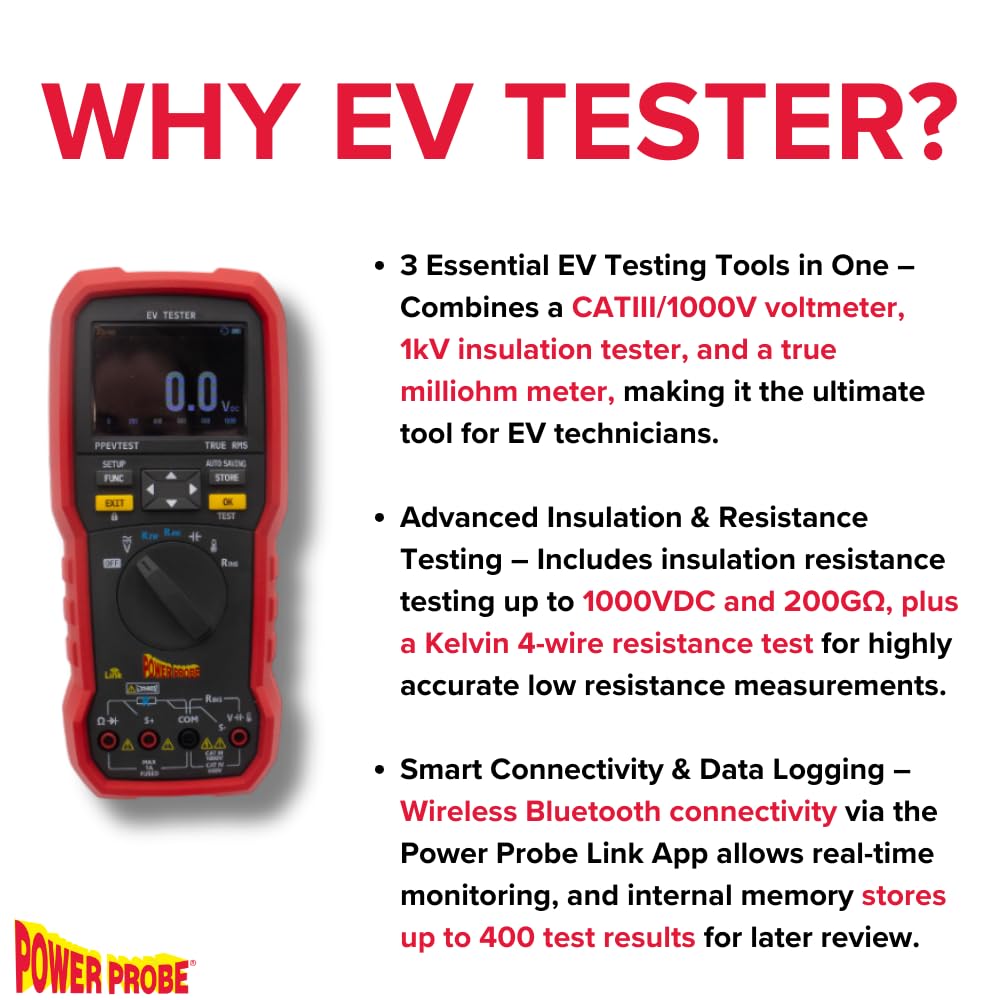

  • Power Probe PPEVTEST EV Tester with three essential EV testing tools in one: CAT III 1000V voltmeter, 1kV insulation tester and true milliohm meter

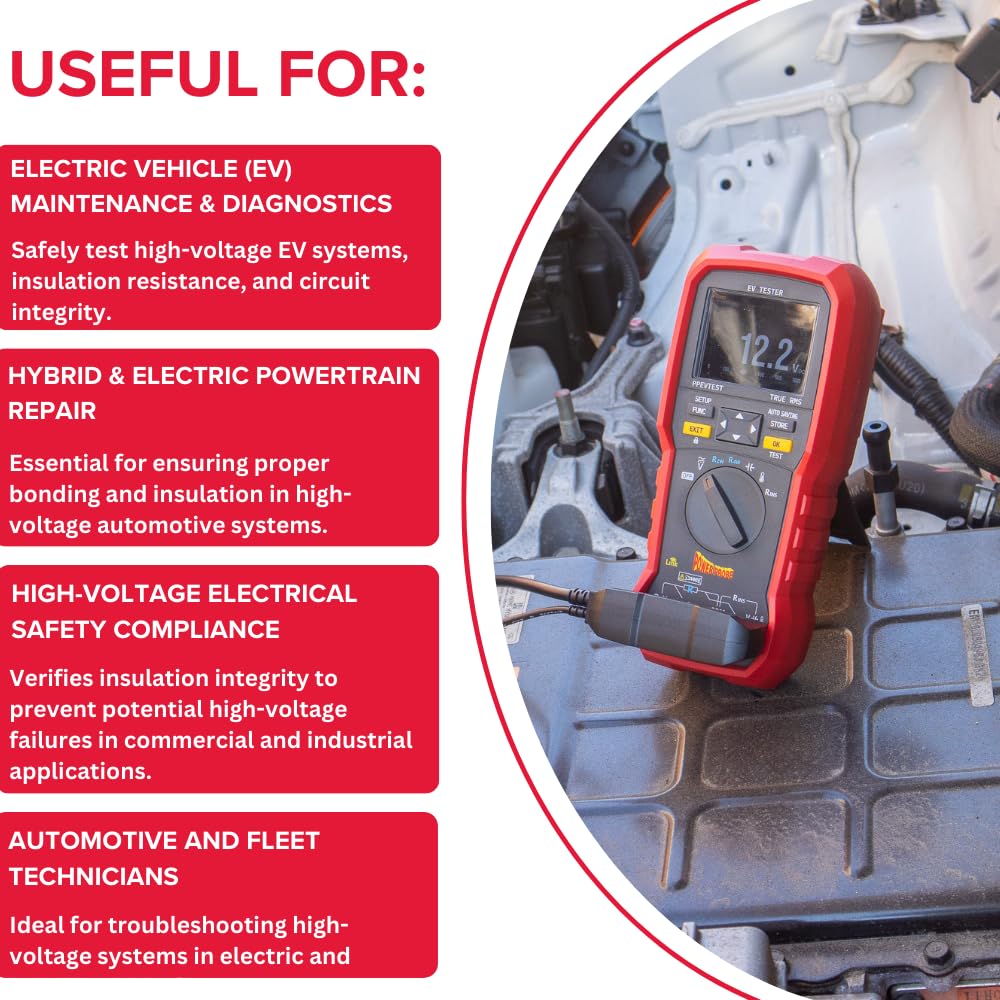

  • Power Probe PPEVTEST EV Tester measuring voltage on an electric vehicle high-voltage system under the bonnet

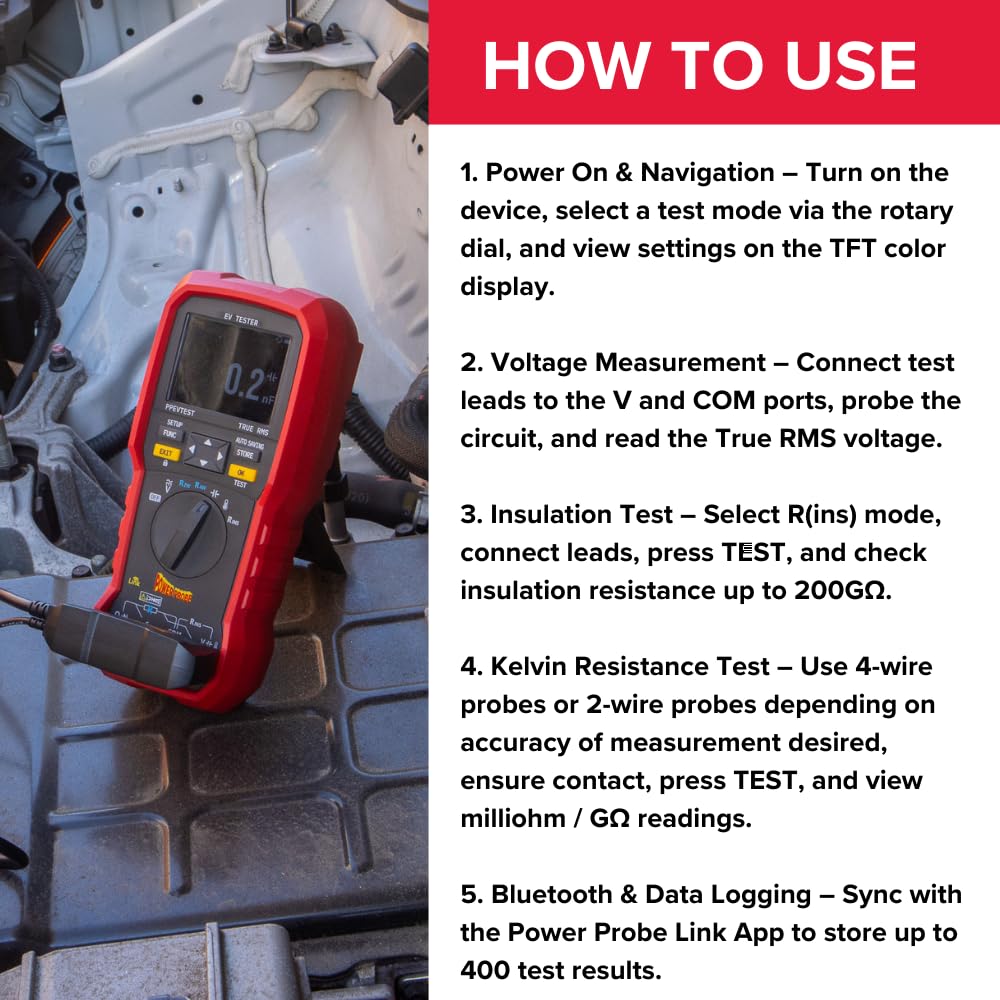

  • Power Probe PPEVTEST EV Tester how-to-use steps: power on, voltage measurement, insulation test, Kelvin resistance test, Bluetooth data logging
  • Power Probe PPEVTEST what's included: tester, alligator clip set, CAT III/IV test leads, Kelvin 4-wire CLIP4W leads, ISOPROBE leads, K-type thermocouple, magnet strap, manual and case
1 6

Power Probe

Power Probe PPEVTEST Multimeter for EV Repair & Maintenance

Power Probe PPEVTEST Multimeter for EV Repair & Maintenance

£857.77
£857.77
Sale Sold out
UK Taxes included. Shipping calculated at checkout.
Fast shippingDispatched in 24-48h
Pro warrantyBacked by Power Probe
Expert supportReal technicians
What it is

Three testers. One EV-ready tool.

The Power Probe PPEVTEST is a professional electrical safety tester built for electric and hybrid vehicle diagnostics. It replaces a CAT III 1000V/CAT IV 600V True RMS voltmeter, a 1kV insulation resistance tester and a true milliohm meter in one handheld unit, so a technician can check voltage, insulation integrity and bonding resistance on high-voltage EV systems without switching tools.

// Function 01
True RMS Voltmeter
CAT III 1000V / CAT IV 600V AC/DC
// Function 02
Insulation Tester
Up to 1000VDC, 200GΩ, with PI/DAR
// Function 03
Milliohm Meter
4-wire Kelvin from 0.001mΩ
// Function 04
Bluetooth Logging
Stores 400 results via Power Probe Link
Features & functions
  • Replaces a CAT III 1000V/CAT IV 600V True RMS voltmeter, a 1kV insulation tester and a true milliohm meter in one instrument.
  • Insulation resistance up to 1000VDC and 200GΩ, with Polarization Index, Dielectric Absorption Ratio and countdown timer calculations.
  • 4-wire Kelvin resistance from 0.001mΩ for bonding and low-resistance checks; 2-wire mode covers up to 40.00kΩ.
  • Smart diode test automatically detects polarity, or run the traditional positive-only Classic mode.
  • Wire length calculator works out cable length from AWG and measured resistance, up to 10km.
  • Capacitance up to 1000µF and temperature from -40°C to 400°C via the included K-type thermocouple.
  • Bluetooth 5.0 connects to the Power Probe Link app for remote monitoring, storing up to 400 test results with auto-save.
  • 2.8in backlit TFT colour display with bar-graph scale and a PASS/FAIL compare indicator against user-set thresholds.
CAT III 1000V / CAT IV 600V rated: built and accessorised for safe measurement on high-voltage EV and hybrid systems, not just standard 12V automotive circuits.
Technical specifications
Function Range / value
Voltage True RMS AC/DC, up to 1000V, CAT III 1000V / CAT IV 600V
Resistance, 2-wire 0.01Ω – 40.00kΩ
Resistance, 4-wire Kelvin 0.001mΩ – 40.00Ω
Insulation resistance Up to 1000VDC, 200GΩ, with PI / DAR / Timer
Capacitance 100.0nF – 1000µF
Temperature -40°C to 400°C / -40°F to 752°F
Display 2.8in backlit TFT colour, 4000 counts
Bluetooth BLE 5.0, 6m+ range, Power Probe Link app
Data storage Up to 400 test results
Power 4 × 1.5V AA alkaline batteries
Dimensions / weight 96 x 207 x 54mm with holster / 630g including battery
What's in the box
1× Power Probe PPEVTEST Electrical Safety Tester · Alligator Clip Set · CAT III 1000V/CAT IV 600V Threaded Test Leads · Kelvin 4-Wire CLIP4W Test Leads · ISOPROBE Test Leads · K-Type Thermocouple · Magnet Strap · User Manual · Protective Carrying Case
