Power Probe

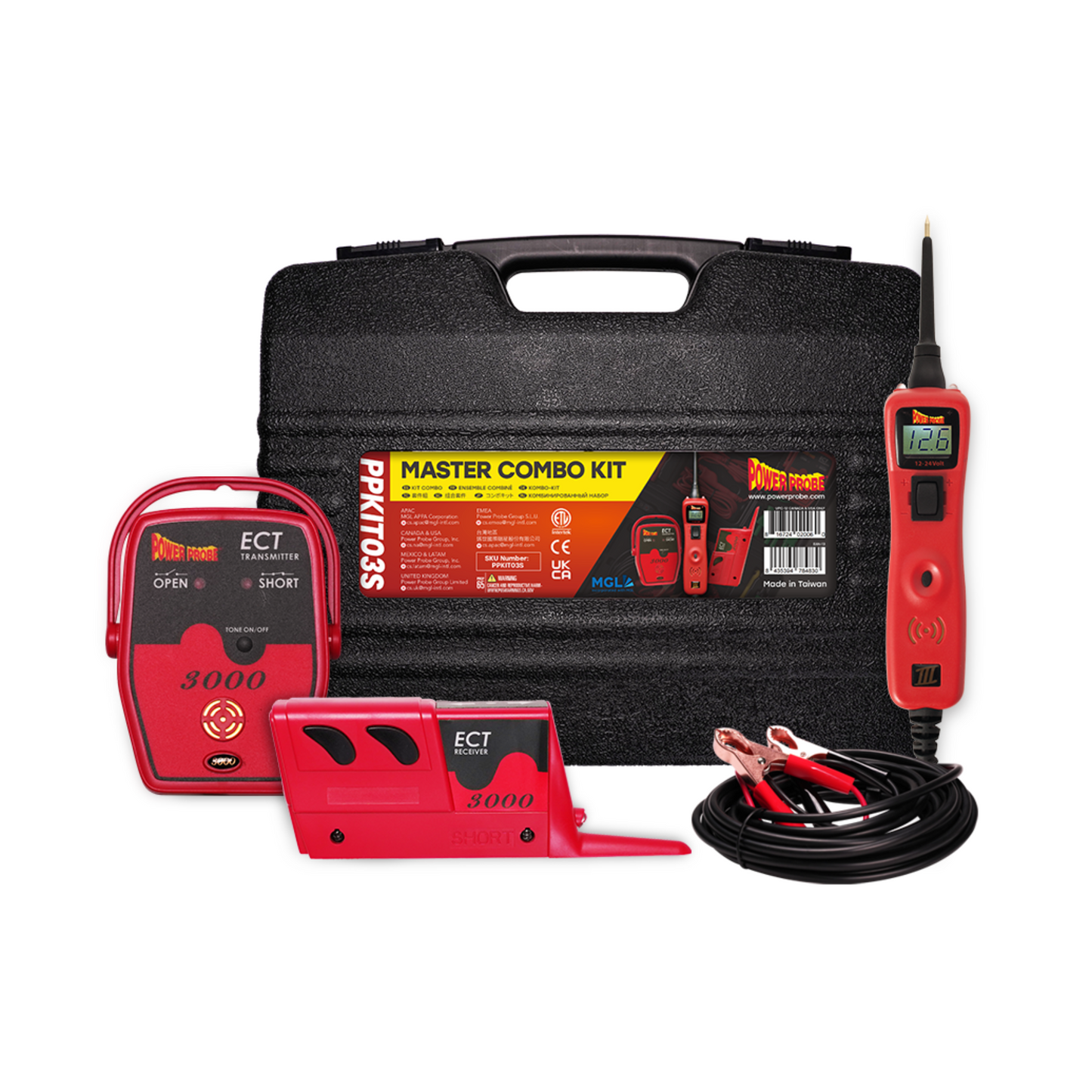

Power Probe PPKIT03S with PP3CSRED and ECT3000
Power Probe PPKIT03S with PP3CSRED and ECT3000
Regular price
£394.69
Regular price
Sale price
£394.69
UK Taxes included. Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Fast shippingDispatched in 24-48h
Pro warrantyBacked by Power Probe
Expert supportReal technicians
Share
What it is
Two tools. One diagnostic workflow.

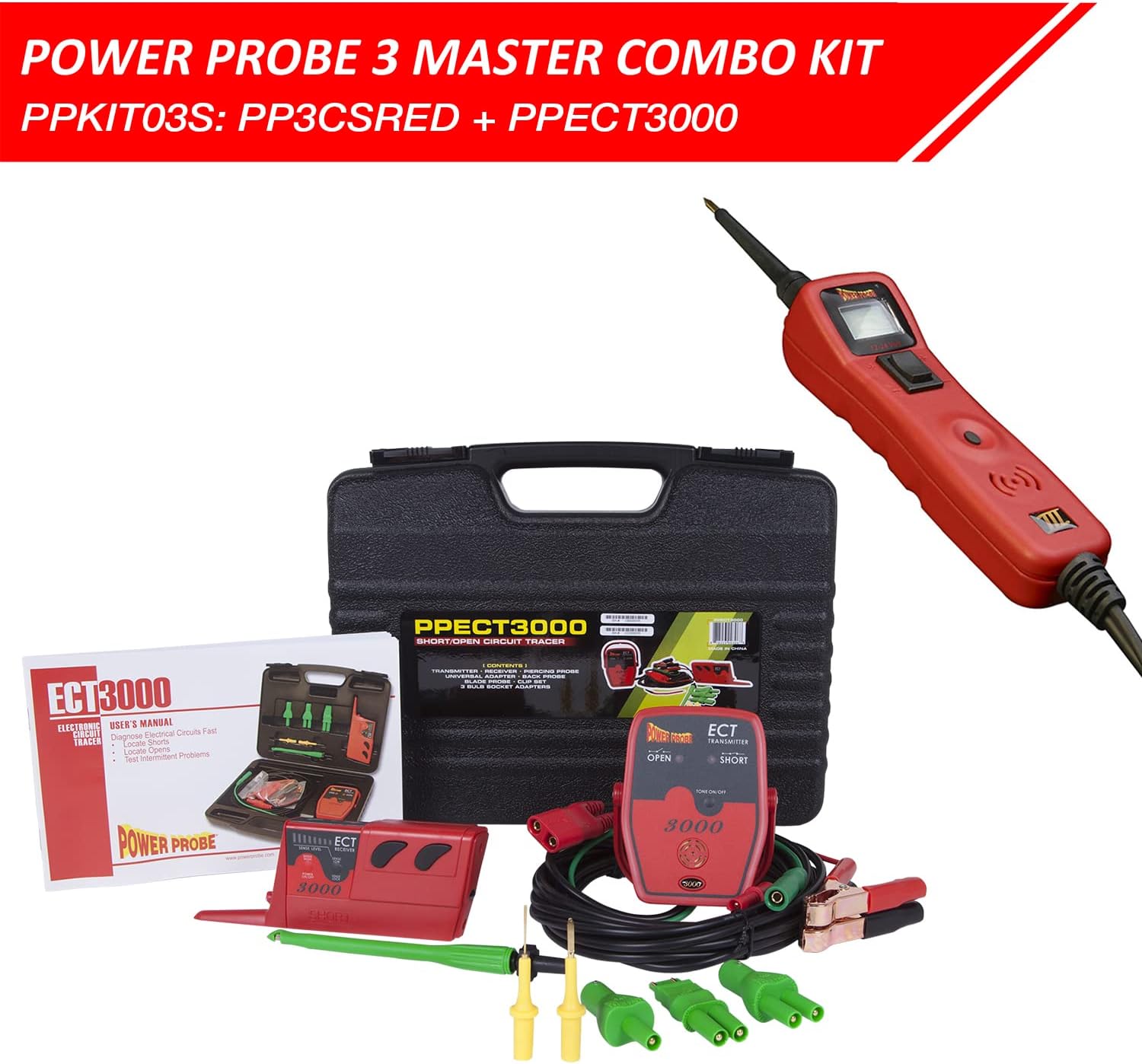

The Power Probe 3 Master Combo Kit pairs the classic Power Probe 3 (PP3) circuit tester with the PPECT3000 Electronic Circuit Tracer and a full adapter set in a hard carry case. The PP3 powers and measures components; the ECT3000 locates the physical position of shorts and open circuits inside the harness — without removing panels, carpet or moulding.
// PP3 · 01
Power & Ground
Activate motors, relays, lamps & solenoids at the tip
// PP3 · 02
Voltmeter & Continuity
0–70V DC readout, two-level continuity, tone monitor
// ECT · 03
Trace Shorts
Locate shorts to ground without removing trim
// ECT · 04
Find Opens
Pinpoint breaks with the directional receiver
Features & functions
- Power Probe 3 supplies battery power or ground at the probe tip to functionally test motors, lamps, relays and solenoids — on or off the vehicle
- Digital voltmeter reads 0 to 70V DC with min/max capture, backed by red/green polarity LEDs
- Two-level continuity to ground (LCD <20kΩ, green LED <600Ω) plus audible tone pass-through from 10Hz to over 10kHz to listen to sensor signals
- Peak detector captures positive and negative transient events down to 1ms pulse width
- PPECT3000 tracer locates shorts to ground, open circuits and breaks behind panels, carpet or moulding
- Adjustable receiver sensitivity (1–8 in / 3–20 cm) to zero in on the exact fault location
- The ECT3000's 4kHz tone is audible directly through the PP3 for side-by-side use
- Full adapter set — bulb, universal, alligator, blade, back-probe, piercing probe and auxiliary ground extension — in a hard carry case
8A manual-reset breaker: the PP3's thermal circuit breaker protects the tool and the vehicle's wiring from accidental shorts, with live bad-ground and short-circuit indicators.
Technical specifications
| Function | Range / value |
|---|---|
| PP3 working voltage | 12 / 24 V DC |
| PP3 voltage measurement | 0 to +70V DC |
| PP3 circuit breaker | 8 A thermal, manual reset |
| PP3 cable length | 20 ft (6 m) |
| PP3 continuity to ground | <20kΩ (LCD) / <600Ω (green LED) |
| ECT3000 transmitter | 4 kHz signal, 6–48 V DC |
| ECT3000 receiver sensitivity | 1–8 in (3–20 cm) |
What's in the box

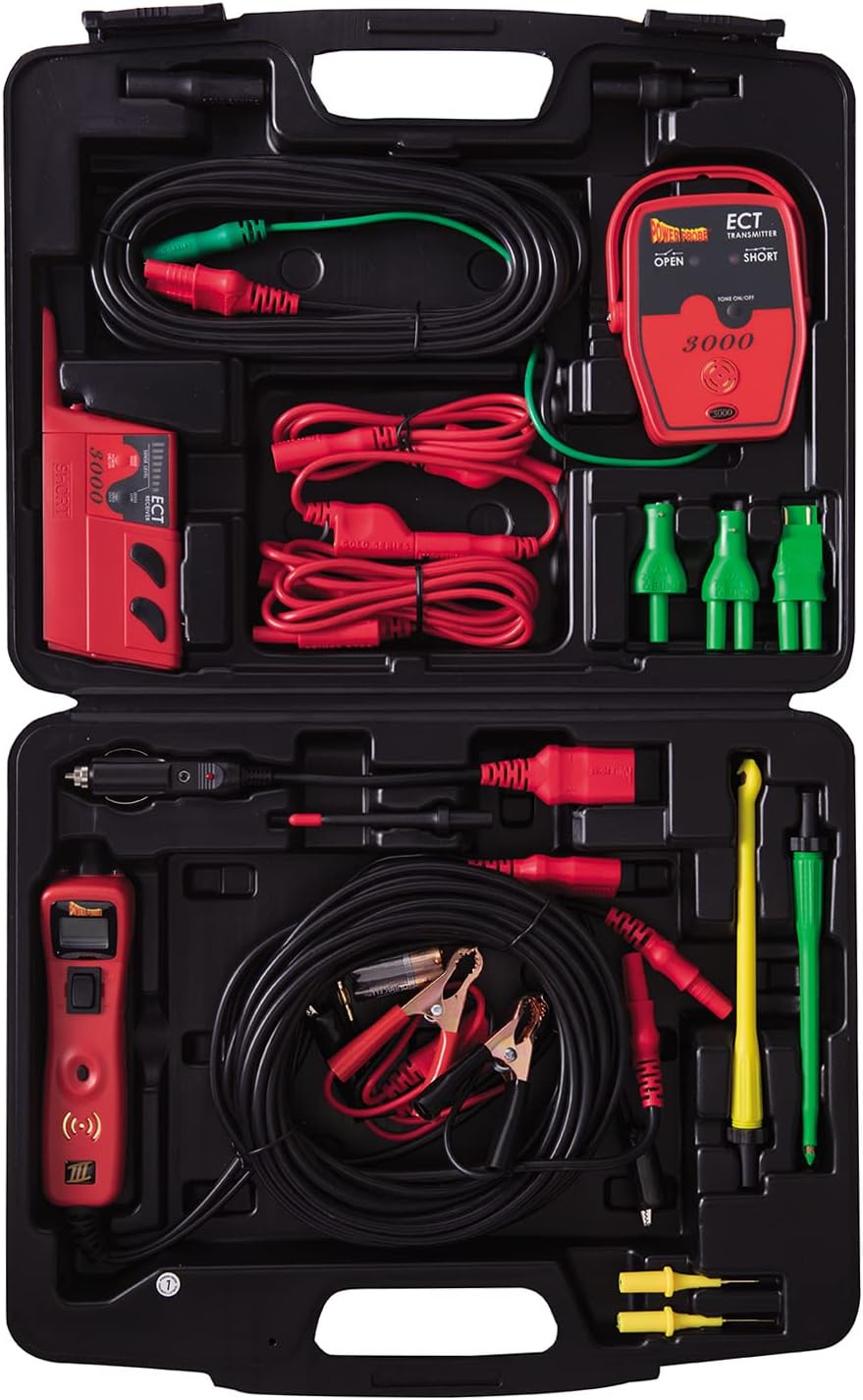

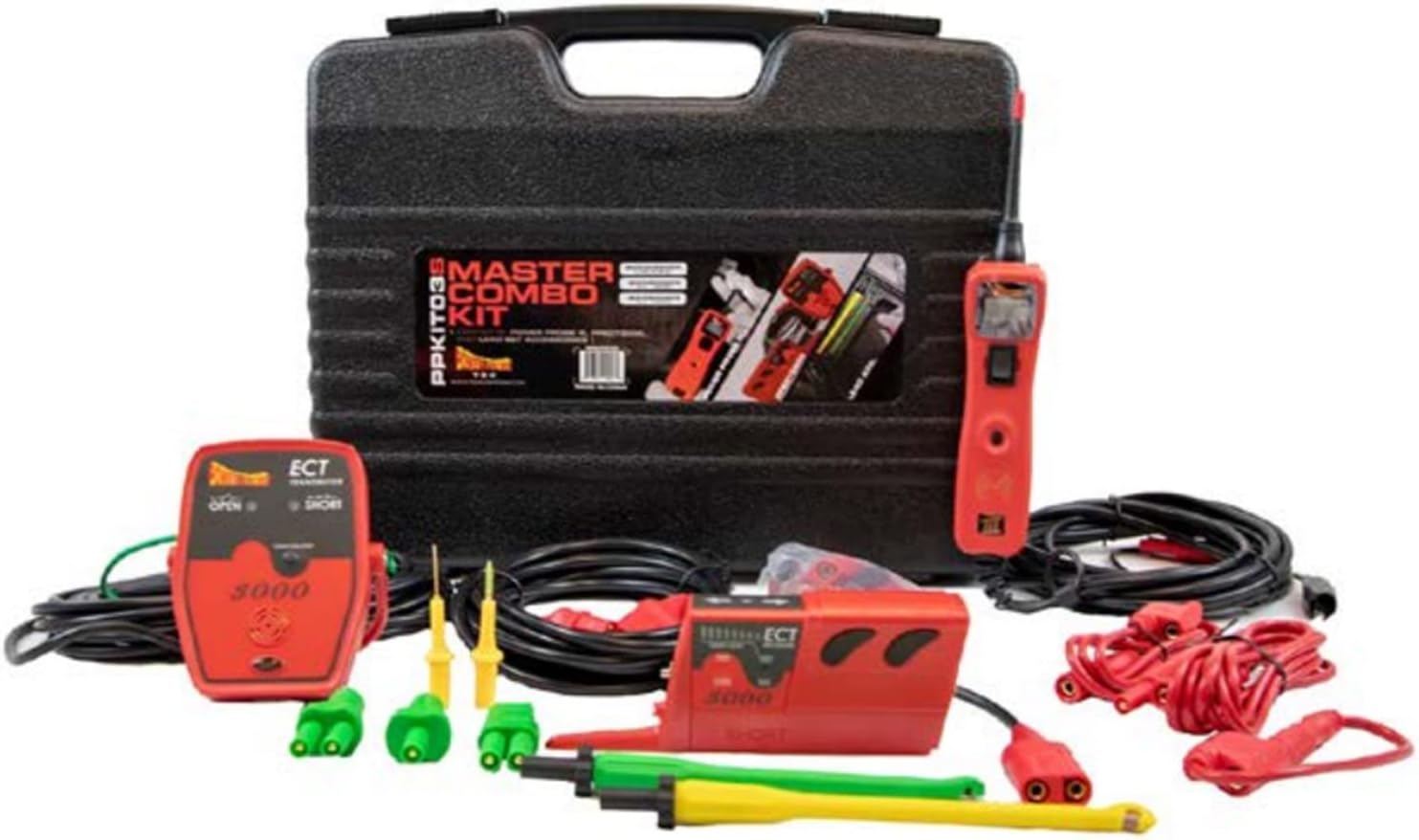

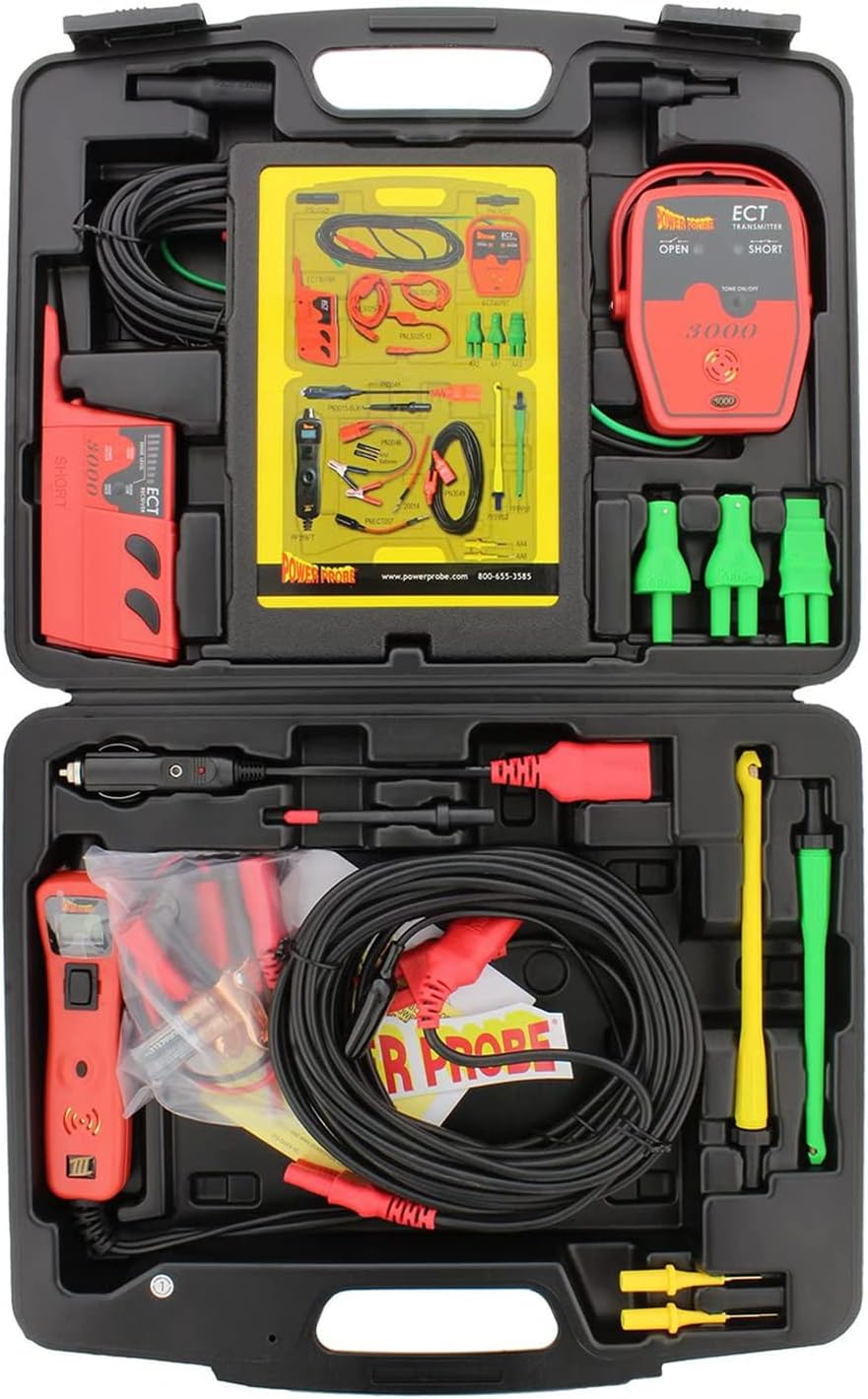

1× Power Probe 3 (Red) · 1× ECT3000 transmitter · 1× ECT3000 receiver · 1× PP3 power cable with battery clips · 1× PP3 probe tip · universal, alligator, blade & back-probe adapters · green piercing probe · 3× light-bulb adapters · auxiliary ground extension cable · cigarette-lighter adapter · AAA batteries · hard carry case
