Power Probe
Power Probe PPROKIT01 with PP3CSRED and PPDMM
Power Probe PPROKIT01 with PP3CSRED and PPDMM
Regular price
£313.09
Regular price
Sale price
£313.09
UK Taxes included. Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Fast shippingDispatched in 24-48h
Pro warrantyBacked by Power Probe
Expert supportReal technicians
Share
What it is
Circuit tester plus multimeter. One pro kit.

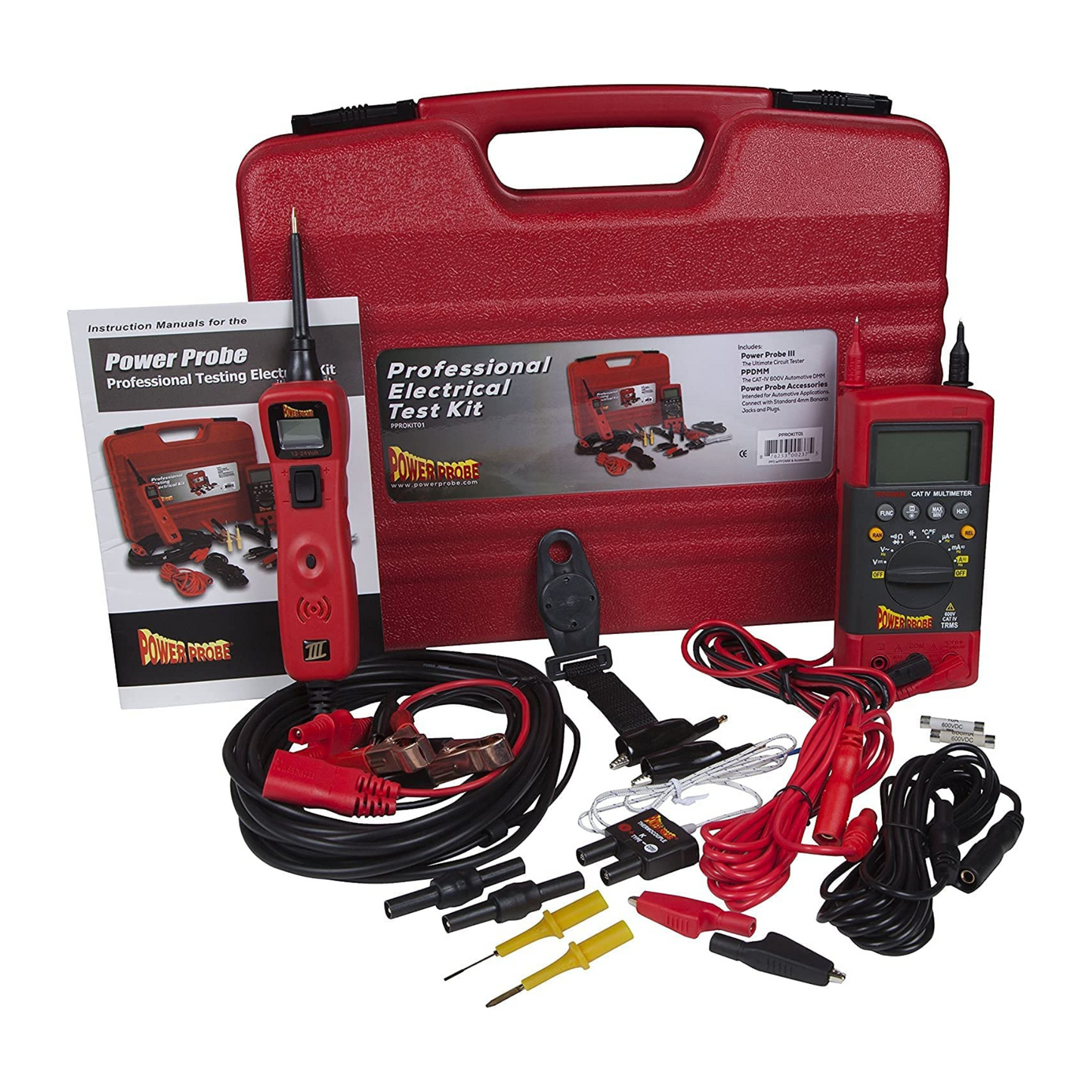

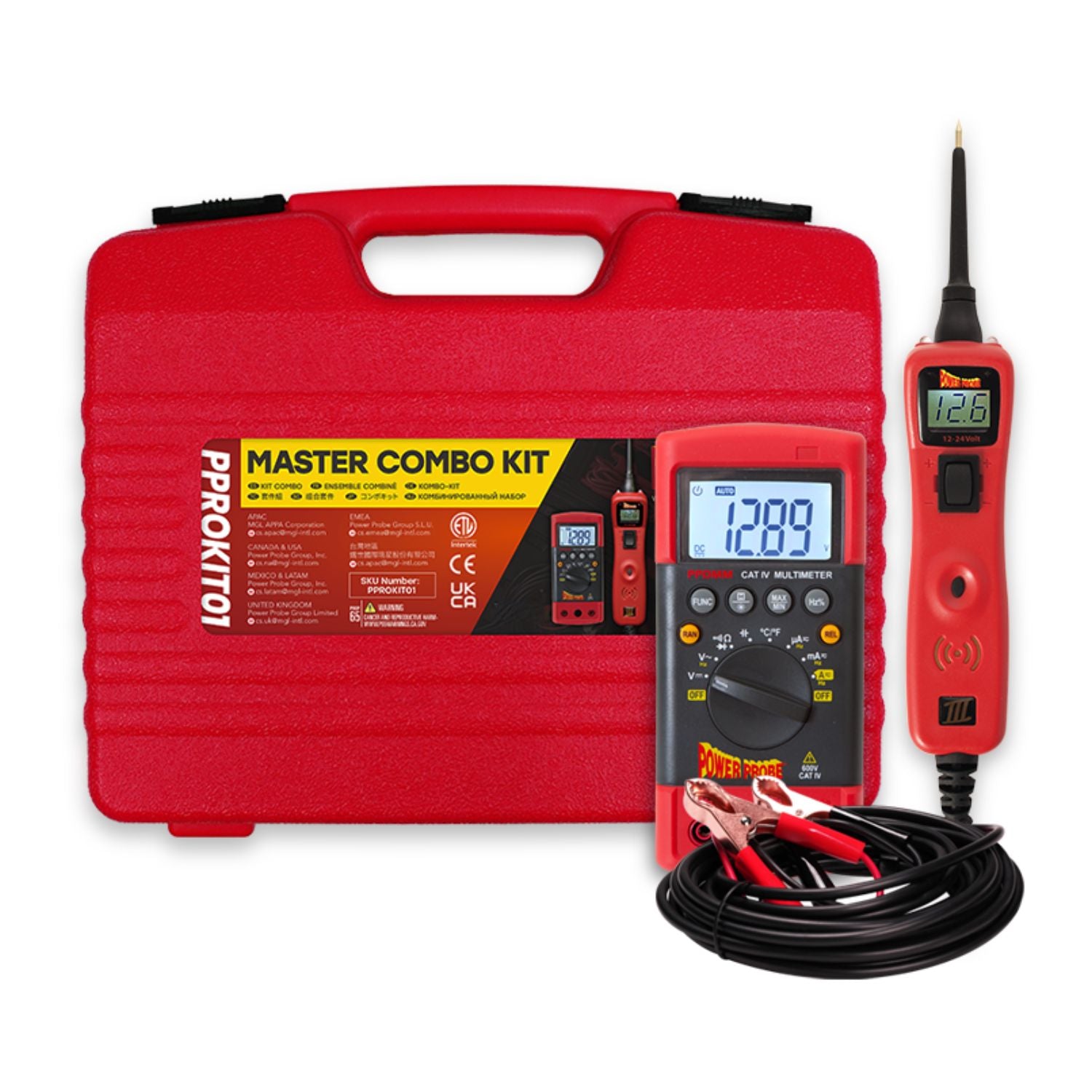

The Power Probe PROKIT (PPROKIT01) is a professional electrical test kit that pairs the Power Probe 3 (PP3) circuit tester with the PPDMM CAT IV 600V hybrid-safe digital multimeter. Use the PP3 to apply power and ground at the tip and actuate components, then reach for the PPDMM to measure voltage, current, resistance, capacitance, frequency, diode, continuity and temperature — with every lead, adapter, fuse and battery packed into one blow-moulded case.
// Tool 01
Power Probe 3
Applies power & ground at the tip
// Feature 01
Tone & Continuity LEDs
Instant go / no-go to ground
// Tool 02
PPDMM Multimeter
AC/DC 600V, 10A, 60 MOhm, temp
// Feature 02
CAT IV 600V
Hybrid-safe, 6000-count display

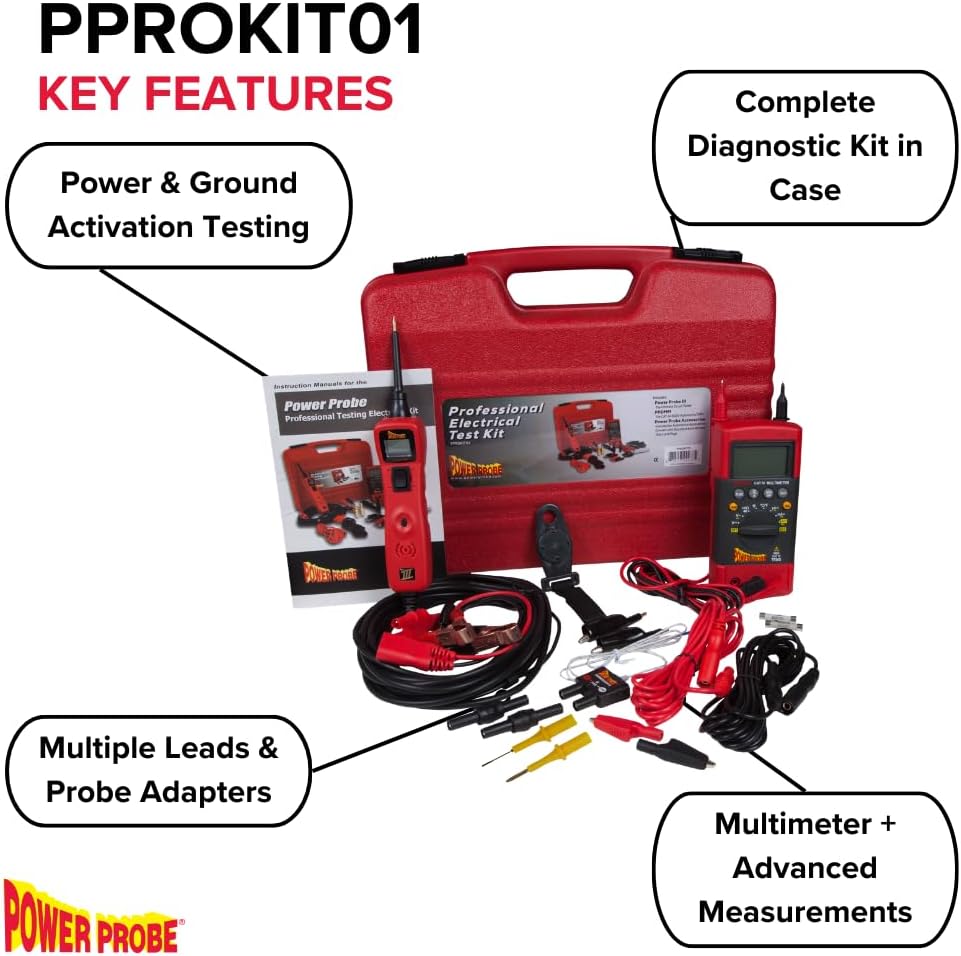

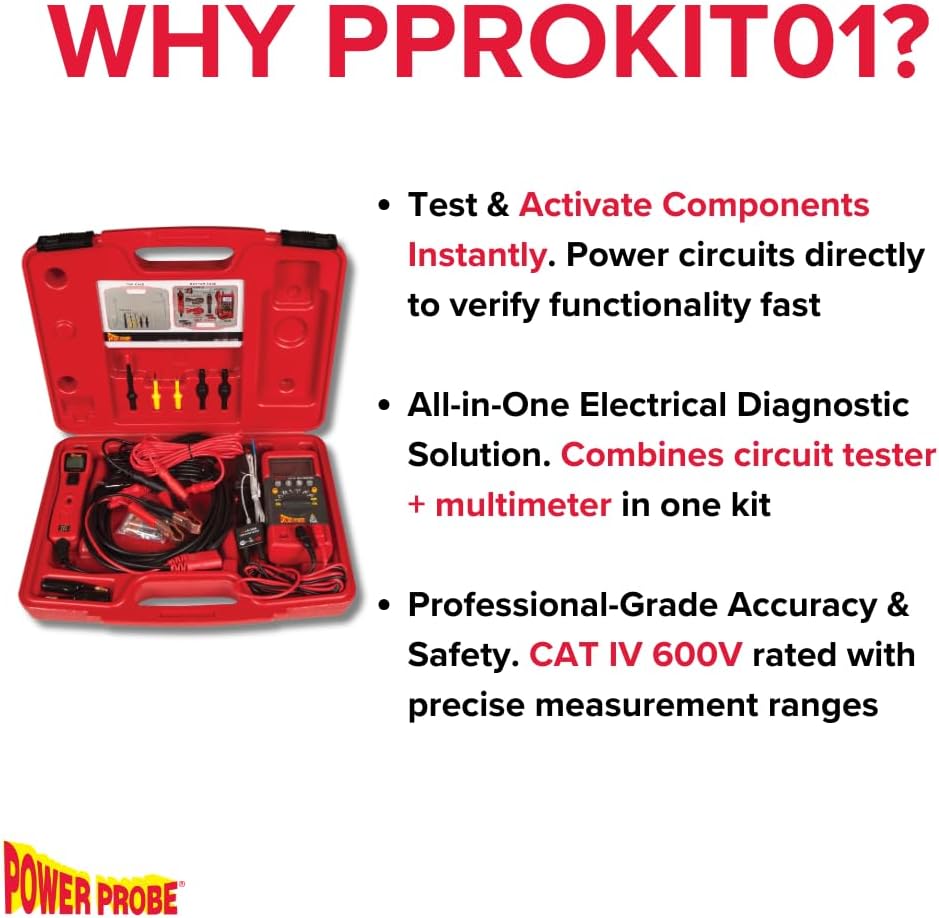

Features & functions
- Power Probe 3 supplies power and ground at the tip to actuate motors, relays and solenoids, with continuity LEDs and an audible tone
- PPDMM digital multimeter reads AC/DC voltage to 600V, current to 10A, resistance to 60 MOhm, capacitance to 60 mF and frequency to 10 kHz
- Diode, continuity and temperature measurement to 1000C on a 6000-count display with backlight, hold, autoranging and MIN/MAX/REL
- CAT IV 600V / CAT III 1000V hybrid-safe rating for working across installations
- Full accessory set: 10 ft red and black leads, 5 ft CAT IV test leads, alligator clips, back-probe and blade-probe adapters and 4 mm couplers
- Spare 10A and 600mA fuses, magnetic strap and batteries, all in a blow-moulded carrying case

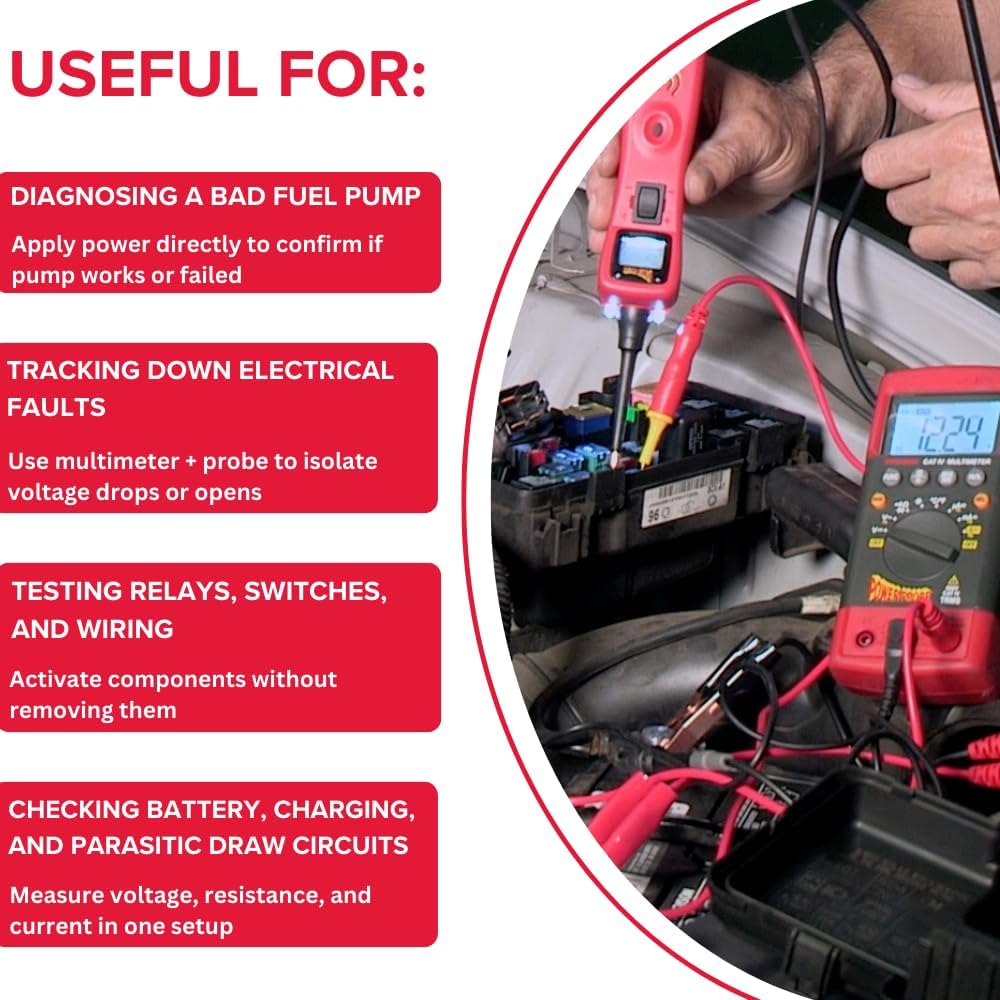

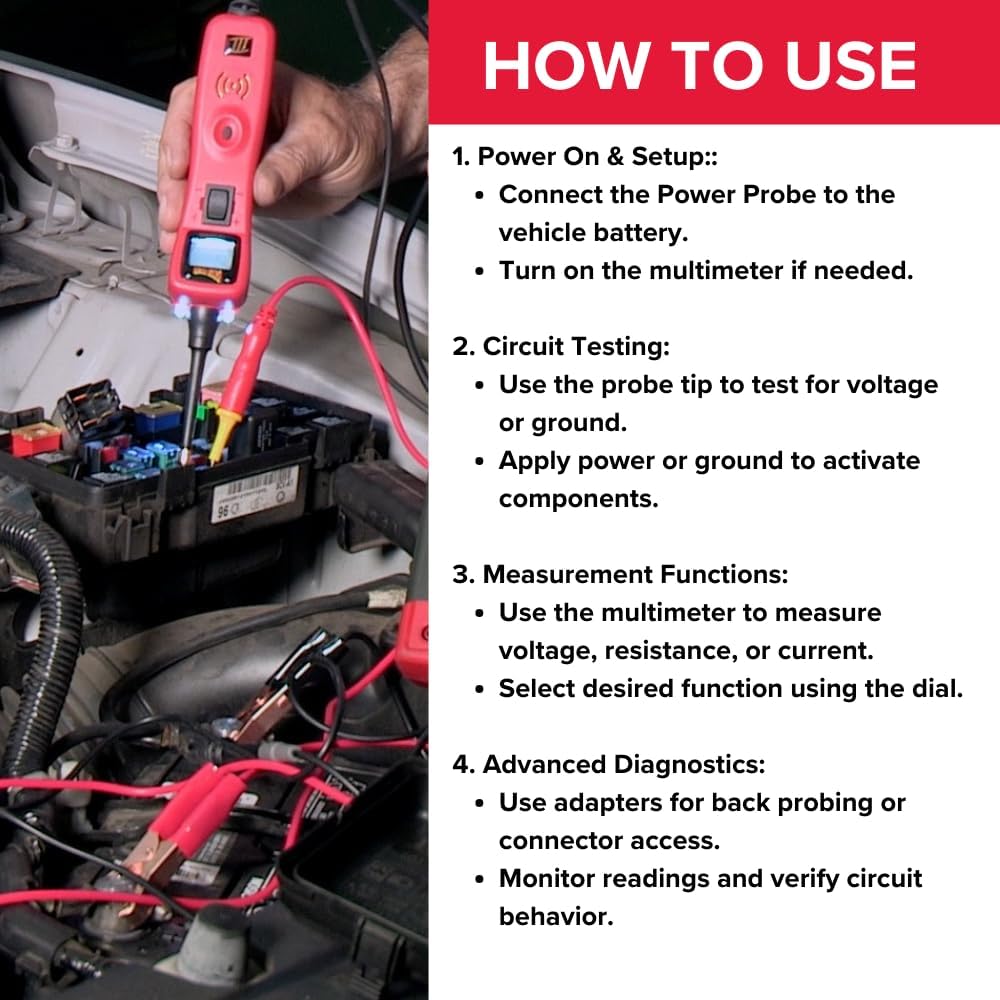

Actuate, then measure: drive a component with the PP3 to confirm it works, then verify the numbers with the PPDMM — two pro tools that travel together.
Technical specifications
| Function | Range / value |
|---|---|
| PP3 function | Supplies power and ground for component testing |
| PP3 continuity | Display < 20 kOhm; green LED < 600 Ohm |
| PP3 circuit breaker | 8 Amp thermal, manual reset |
| PPDMM DC / AC voltage | 600 VDC / 600 VAC |
| PPDMM DC / AC current | 10 A |
| PPDMM resistance | 60 MOhm |
| PPDMM capacitance | 60 mF |
| PPDMM frequency | 10 kHz |
| PPDMM diode / continuity | 2.7V / < 50 Ohm |
| PPDMM temperature | -20C to 1000C |
| PPDMM display | 6000 counts, backlight, autoranging, MIN/MAX/REL |
| PPDMM safety rating | CAT IV 600V / CAT III 1000V |
What's in the box
1× Power Probe 3 (PP3) · 1× PPDMM digital multimeter · 10 ft red lead · 10 ft black lead · 5 ft CAT IV 600V test leads · 2× alligator clips · Back probe adapter · Blade probe adapter · 4 mm male/male and female/female adapters · 3 in probe tip · Battery clip set · Spare 10A and 600mA fuses · Magnetic strap · 3× AAA batteries · Instruction manual · Blow-moulded carrying case
