Power Probe
Power Probe Starter Kit – 8-Tool Automotive Diagnostic Set
Power Probe Starter Kit – 8-Tool Automotive Diagnostic Set
Regular price
£1,049.95
Regular price
£1,256.23
Sale price
£1,049.95
UK Taxes included. Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Fast shippingDispatched in 24-48h
Pro warrantyBacked by Power Probe
Expert supportReal technicians
Share
What it is
Everything to start diagnosing. One kit.

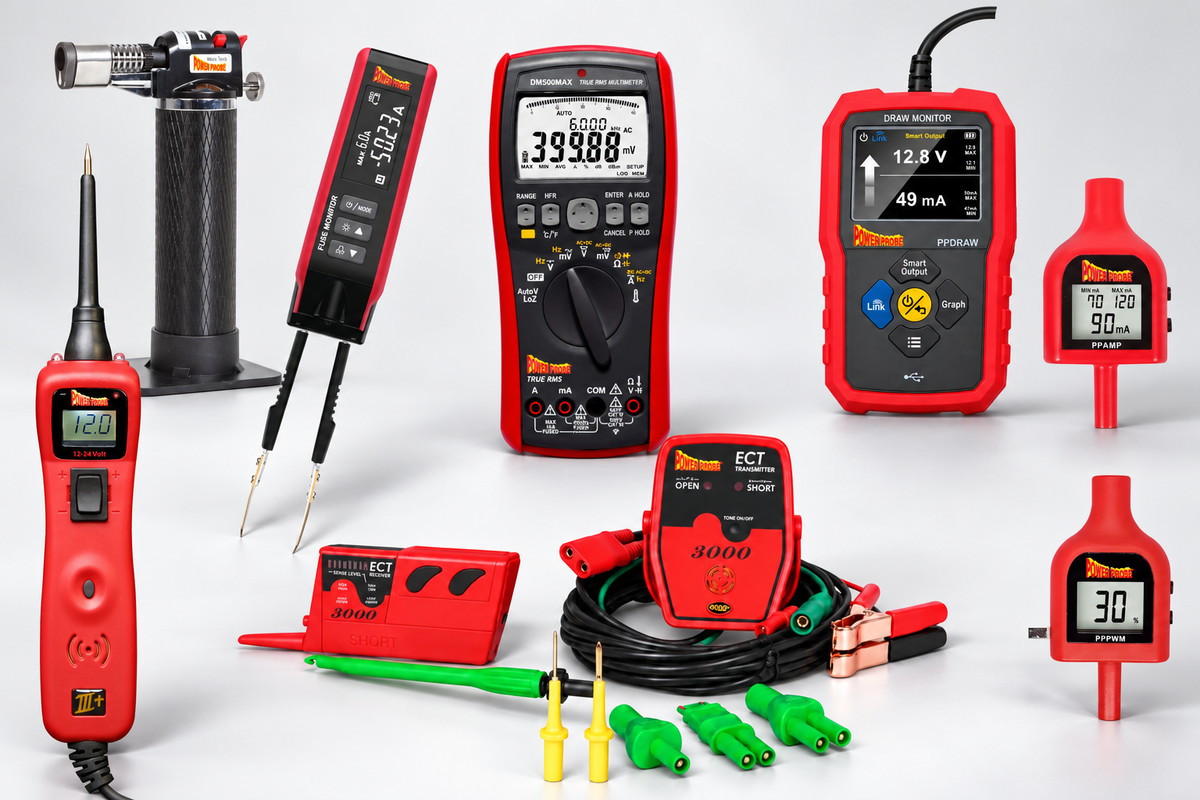

The Power Probe Starter Kit brings eight diagnostic tools together: the PP3+ circuit tester, the DM500MAX True RMS multimeter, the Micro Torch, the PPECT3000 circuit tracer kit, the Fuse Monitor, the Draw Monitor and the PPAMP and PPPWM adapter tips. Test circuits, measure, trace faults, monitor draw and make the repair — all from one Power Probe set.
// Step 01
Test
PP3+ circuit tester
// Step 02
Measure
DM500MAX multimeter
// Step 03
Trace & monitor
PPECT3000, Fuse & Draw Monitors
// Step 04
Repair
Micro Torch
Features & functions
- PP3+ supplies power and ground at the tip and adds resistance measurement (0 to 25 kΩ) to find high-resistance faults
- DM500MAX True RMS multimeter with a 40,000-count dual display, data logging, Auto LoZ and K-type temperature measurement
- Micro Torch gives you a refillable butane flame for soldering and heat-shrink work, with push-button ignition and an adjustable flame
- PPECT3000 circuit tracer kit: ECT3000B transmitter and receiver locate short and open circuits without removing trim or carpet, supplied with adapters and a hard carry case
- Fuse Monitor reads current through blade fuses in place, with a three-colour status LED for an instant verdict
- Draw Monitor plugs into the OBDII port to measure parasitic draw up to 10A and supplies 12V to keep module memory during a battery change
- PPAMP adapter tip adds inline DC current measurement with MIN/MAX memory; PPPWM adapter tip drives DC components with an adjustable PWM duty cycle
From first test to finished repair: find the fault with the PP3+, confirm it with the DM500MAX, trace the fault with the PPECT3000 and make the repair with the Micro Torch.
What's in the kit
| Tool | What it does |
|---|---|
|

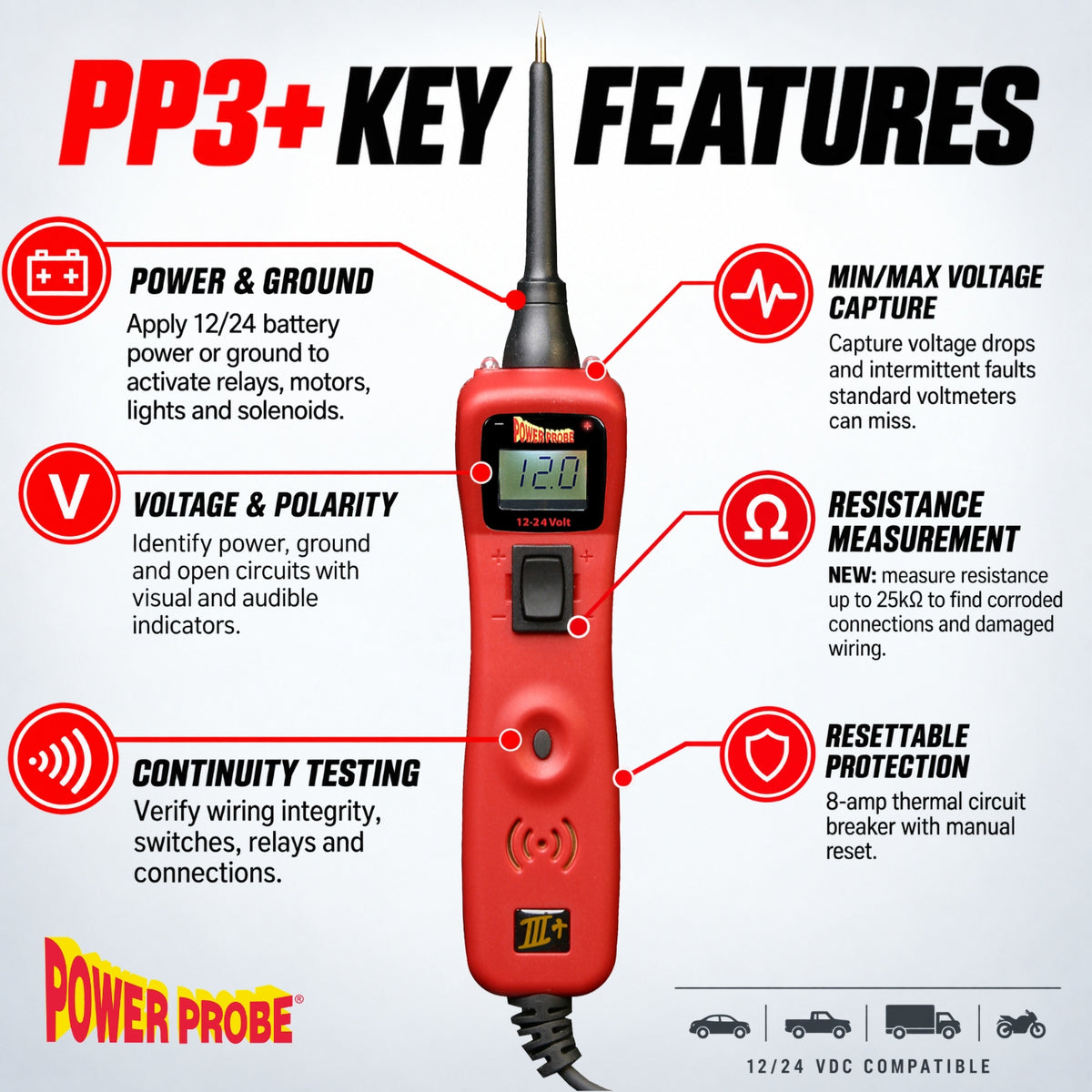

PP3PLUS Power Probe 3+ |
Circuit tester for 12-24V systems: supplies power or ground at the tip, shows voltage and measures resistance (0 to 25 kΩ) with min/max and peak-to-peak capture |
|

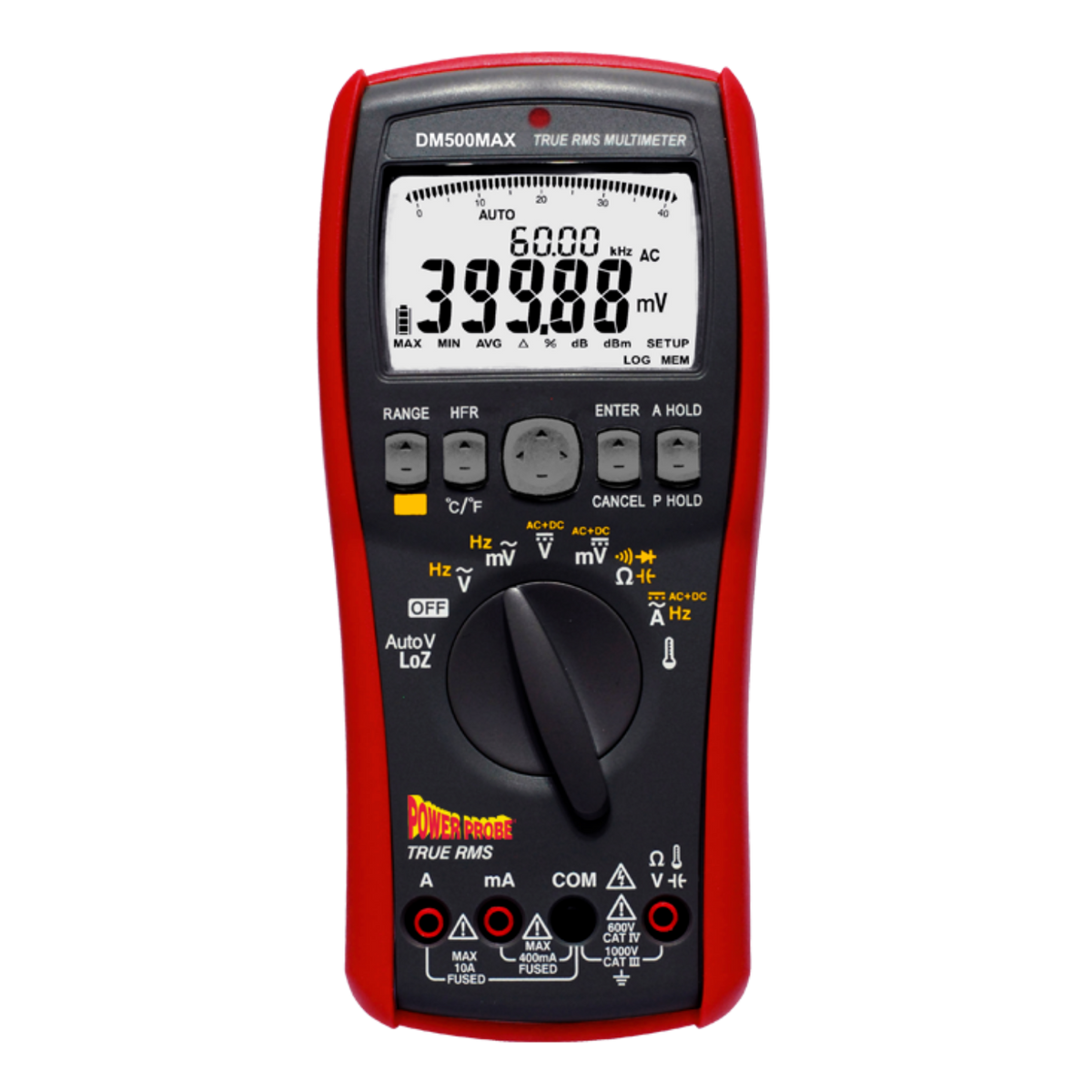

PPDM500MAXCBINT DM500MAX True RMS Multimeter |
40,000-count dual display, data logging, Auto LoZ, AC/DC voltage to 1000V, current to 10A and K-type temperature |
|

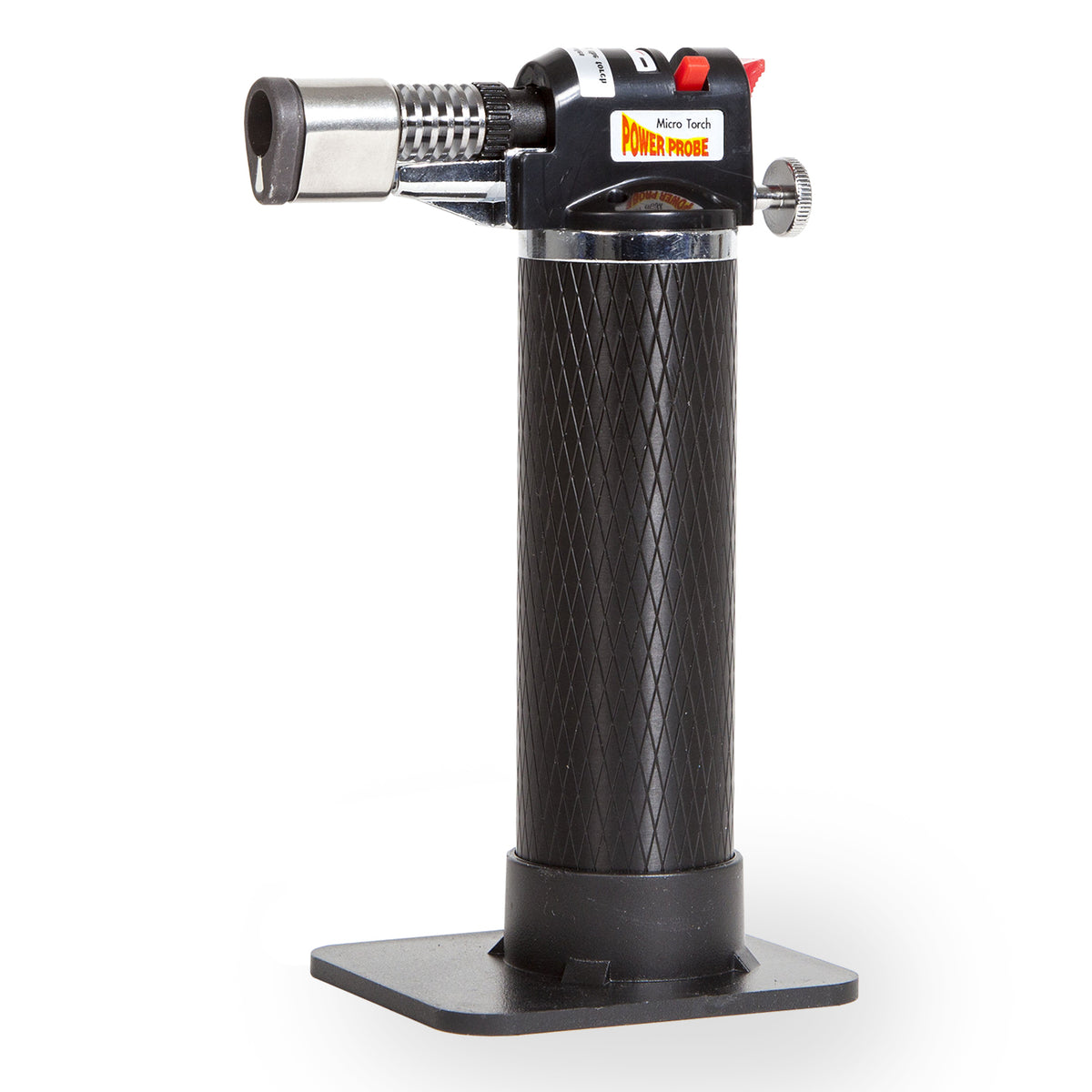

PPMT Micro Torch |
Refillable butane torch with push-button ignition, 12–32 mm adjustable flame and a self-standing base |
|

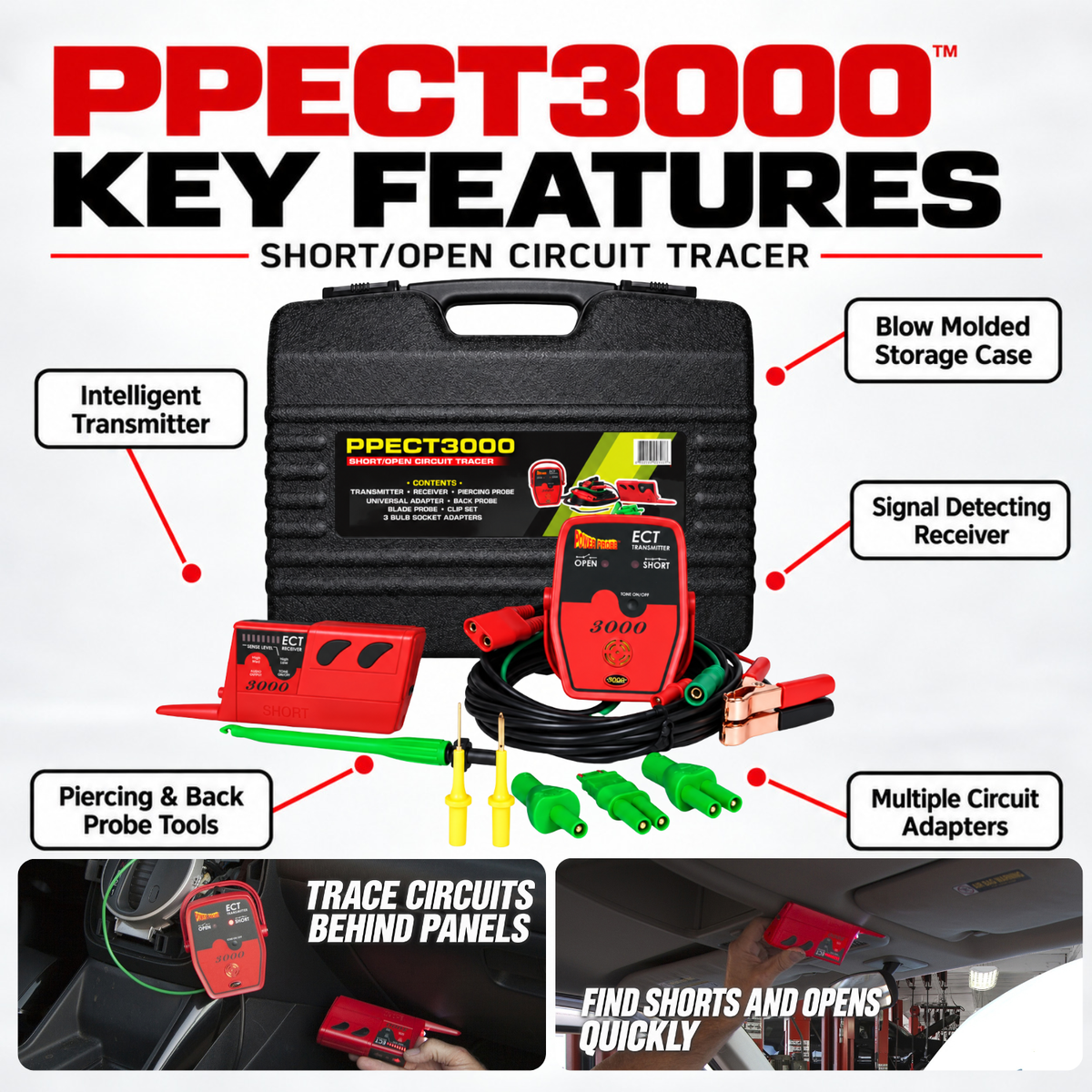

PPECT3000 Circuit Tracer Kit |
ECT3000B transmitter and receiver set that traces short and open circuits behind trim and carpet, supplied with connection adapters and a hard carry case |
|

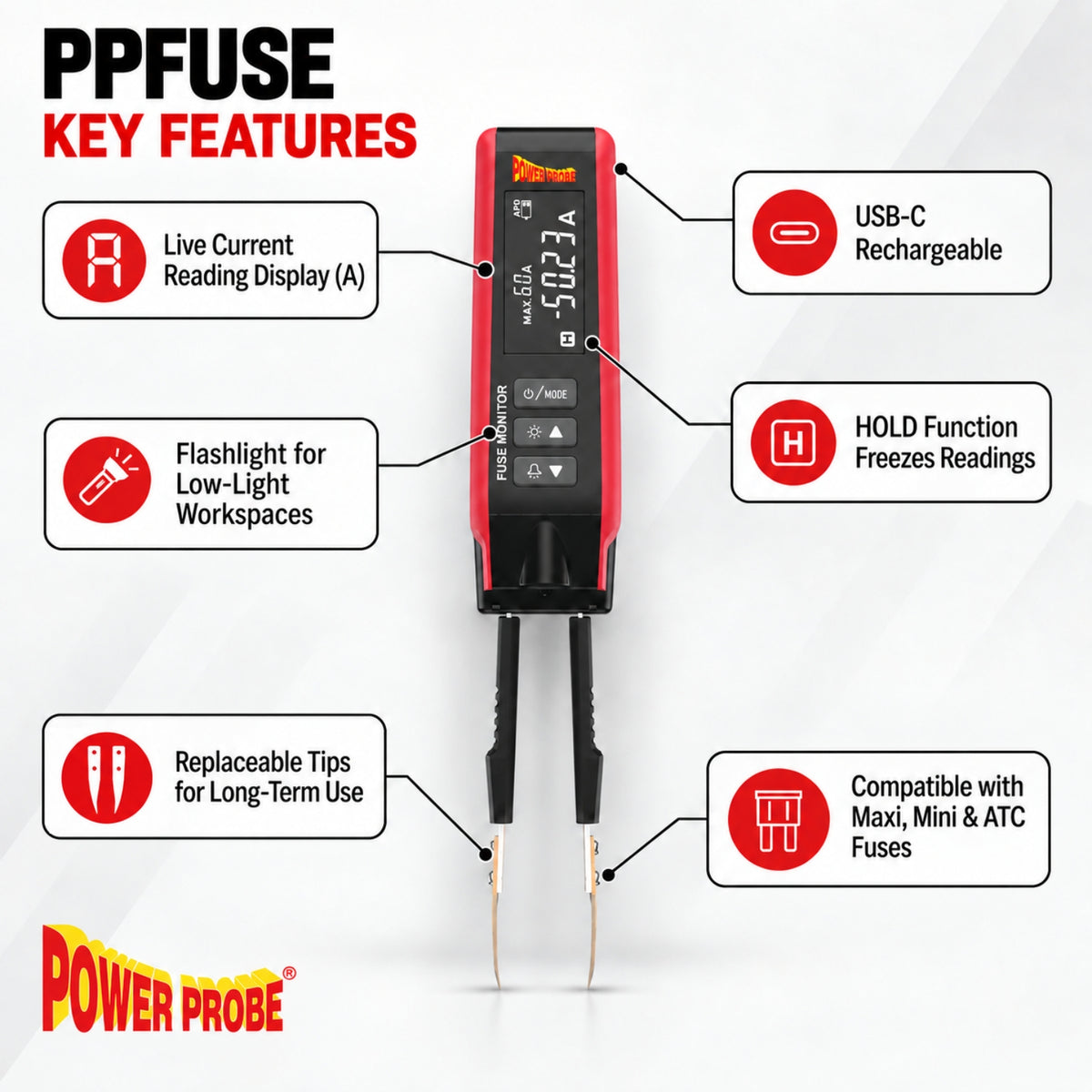

PPFUSECBINT Fuse Monitor |
Reads current through MINI, ATC/ATO and MAXI blade fuses without removing them, with a three-colour status LED |
|

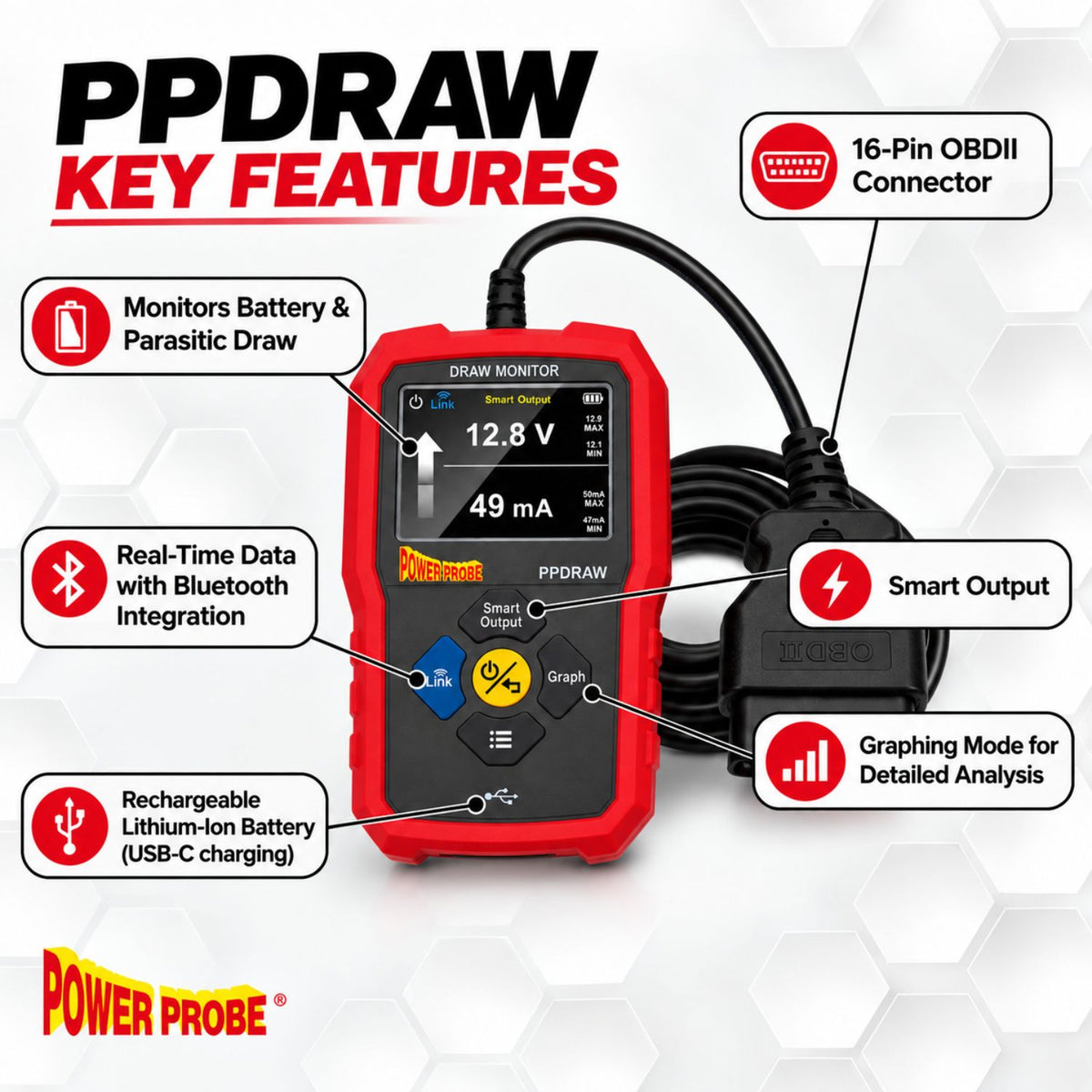

PPDRAWCBINT Draw Monitor |
OBDII tool that measures parasitic draw up to 10A, graphs voltage and current and keeps module memory alive with 12V Smart Output |
|
PPAMPTIPCBINT PPAMP Amp Adapter |
Plug-in tip that adds inline DC current measurement with MIN/MAX memory (10A maximum input) |
|

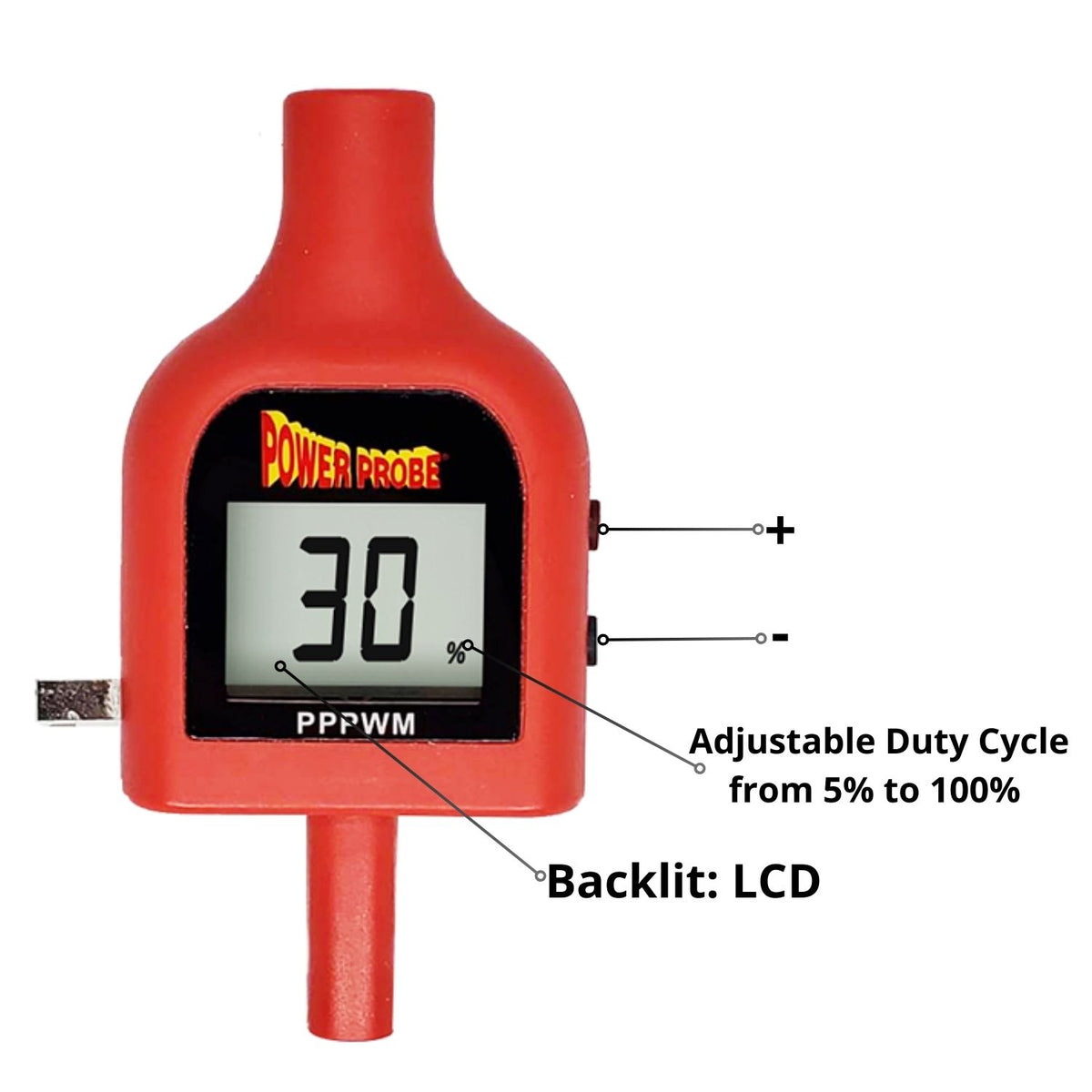

PPPWMTIPCBINT PPPWM PWM Signal Generator |
Plug-in tip that drives DC components with an adjustable 5–100% duty cycle, up to 10A |
What's in the box
1× Power Probe 3+ (PP3+) · 1× DM500MAX True RMS Multimeter · 1× Micro Torch (PPMT) · 1× PPECT3000 Circuit Tracer Kit · 1× Fuse Monitor (PPFUSE) · 1× Draw Monitor (PPDRAW) · 1× PPAMP Amp Adapter · 1× PPPWM PWM Signal Generator · Accessories and manuals supplied with each tool
